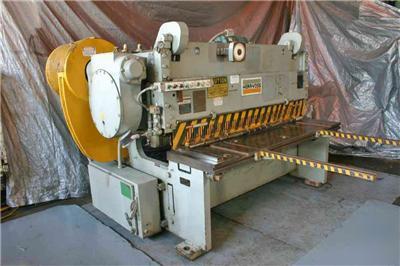

1985 6' x 1/2" herr voss power squaring shear 0806H 18"


For Sale: 1985 6' x 1/2" herr voss power squaring shear 0806H 18"


Subject 1985 6' x 1/2" herr voss power squaring shear 0806H 18"
Ad is submitted by poster: 1985 6' x 1/2" HERR VOSS POWER SQUARING SHEAR 0806H 18"
1985 6' x 1/2" HERR VOSS POWER SQUARING SHEAR 0806H 18"
SERIAL ............................. 23597
MODEL .............................. 0806H
YEAR NEW ........................... 1985
CAPACITY, MILD STEEL ............... 1/2"
DISTANCE BETWEEN HOUSINGS .......... 6'4"
LENGTH OF CUT ...................... 6'
DEPTH OF THROAT .................... 18"
LENGTH OF BLADES ................... 1" X 4 X 76"
FRONT OPERATED POWER BACK GAUGES ... 36"
HOLD DOWNS PRESSURE VARIABLE ....... 8.75 TONS MAXIMUM
(2) FRONT SUPPORTS ................. 36"
STROKE PER MINUTE .................. 55
DISTANCE HOLD DOWN TO KNIFE EDGE ... 7/8 TO 1-7/8"
BALL TRANSFER IN TABLE ............. YES
ELECTRIC FOOT TRIP ................. YES
CENTRAL LUBE ....................... YES
AIR CLUTCH ......................... YES
FLOOR TO TABLE TOP ................. 32"
MOTOR............................... 15 HORSEPOWER
