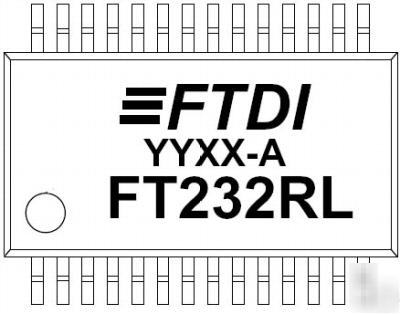

2PCS. FT232RL usb uart ic ftdi SSOP28
For Sale: 2PCS. FT232RL usb uart ic ftdi SSOP28
Subject 2PCS. FT232RL usb uart ic ftdi SSOP28
Ad is submitted by poster:
Incorporating Clock Generator Output
and FTDIChip-IDâ„¢ Security Dongle
The FT232R is the latest device to be added to FTDI’s range of USB UART interface Integrated Circuit Devices. The FT232R is a USB to serial UART interface with optional clock generator output, and the new FTDIChip-IDâ„¢ security dongle feature. In addition, asynchronous and synchronous bit bang interface modes are available. USB to serial designs using the FT232R have been further simpliï¬ed by fully integrating the external EEPROM, clock circuit and USB resistors onto the device.
The FT232R is available in Pb-free (RoHS compliant) compact 28-Lead SSOP and QFN-32 packages.
• Single chip USB to asynchronous serial data transfer interface.
• Entire USB protocol handled on the chip - No USB-speciï¬c ï¬rmware programming required.
• UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
• Fully assisted hardware or X-On / X-Off software handshaking.
• Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).
• 256 byte receive buffer and 128 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
• FTDI’s royalty-free VCP and D2XX drivers eliminate the requirement for USB driver development in most cases.
• In-built support for event characters and line break condition.
• New USB FTDIChip-ID™ feature.
• New conï¬gurable CBUS I/O pins.
• Auto transmit buffer control for RS485 applications.
• Transmit and receive LED drive signals.
• New 48MHz, 24MHz,12MHz, and 6MHz clock output signal Options for driving external MCU or FPGA.
• FIFO receive and transmit buffers for high data throughput.
• Adjustable receive buffer timeout.
• Synchronous and asynchronous bit bang mode interface options with RD# and WR# strobes.
• New CBUS bit bang mode option.
• Integrated 1024 Bit internal EEPROM for storing USB VID, PID, serial number and product description strings, and CBUS I/O conï¬guration.
• Device supplied preprogrammed with unique USB serial number.
• Support for USB suspend and resume.
• Support for bus powered, self powered, and high-power bus powered USB conï¬gurations.
• Integrated 3.3V level converter for USB I/O .
• Integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic.
• True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.
• High I/O pin output drive option.
• Integrated power-on-reset circuit.
• Fully integrated clock - no external crystal, oscillator, or resonator required.
• Fully integrated AVCC supply ï¬ltering - No separate AVCC pin and no external R-C ï¬lter required.
• UART signal inversion option.
• 3.3V to 5.25V Single Supply Operation.
• Low operating and USB suspend current.
• Low USB bandwidth consumption.
• UHCI / OHCI / EHCI host controller compatible
• USB 2.0 Full Speed compatible.
• -40°C to 85°C extended operating temperature range.
• Available in compact Pb-free 28 Pin SSOP and QFN-32 packages (both RoHS compliant).
• Windows 98, 98SE, ME, 2000, Server 2003, XP.
Royalty-Free D2XX Direct Drivers
(USB Drivers + DLL S/W Interface)
• Windows 98, 98SE, ME, 2000, Server 2003, XP.
The drivers listed above are all available to download for free from the FTDI website. Various 3rd Party Drivers are also available for various other operating systems - see the FTDI website for details.
• USB to RS232 / RS422 / RS485 Converters
• Upgrading Legacy Peripherals to USB
• Cellular and Cordless Phone USB data transfer cables and interfaces
• Interfacing MCU / PLD / FPGA based designs to USB
• USB Audio and Low Bandwidth Video data transfer
• USB FLASH Card Reader / Writers
• Set Top Box PC - USB interface
• USB Digital Camera Interface
• USB Software / Hardware Encryption Dongles
2) Bank transfer (bank account in Germany)
