65 gallon northland reactor - t-316 s/s - 42.7/14.3 psi
For Sale: 65 gallon northland reactor - t-316 s/s - 42.7/14.3 psi
Subject 65 gallon northland reactor - t-316 s/s - 42.7/14.3 psi
Ad is submitted by poster:
a r n o l d EQUIPMENT COMPANY
phone: (***)-831-8485 - fax: (***)-831-8414
65 GALLON NORTHLAND REACTOR - T-316 S/S - 42.7/14.3 PSI JACKET

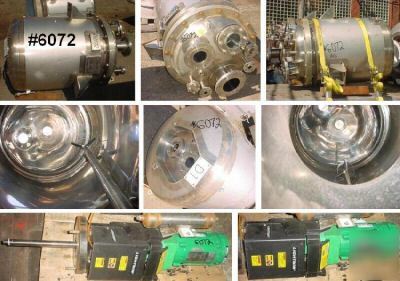

1 - used approx. 65 gallon Northland Stainless, Inc. Reactor
T-316 (8 ga.) stainless steel inner shell, inner top head and inner bottom head
T-304 stainless steel jacket shell and jacket head
Johns-Manville 814 insulation and stainless steel sheathing
T-316 stainless steel flanges and couplings
26 in. ID x 34 in. straight side. Built in 1995
Rated 42.7 psi @ 176 deg. F internal Max. / -20 deg F @ 42.7 psi Min
Stainless steel jacket rated 14.3 psi @ 176 deg. F Max. / -20 deg. F @ 14.3 psi Min
National Board #1927. Manufacturer's serial number 957005
Shell & jacket thickness .165 in. Lug mounted with structural support (included)
3 in. center bottom outlet and approx. 2 1/2 in. bottom outlet
Stainless steel shaft with 3 pitched blades and stabilizer ring (inside vessel)
0.5 HP/UL listed, 230/460V Lightnin drive with pressurized mechanical seal
Bolted dome top with 6 in. flanged inlet for agitator
(1) 4 in. top inlet, (1) 5 in. sight glass with wiper, misc. other top inlets
Approx. 4 in. flanged air/electric valve
PDF Drawing available upon request
