Sage SP4T dc to 12 ghz sma coaxial switch
For Sale: Sage SP4T dc to 12 ghz sma coaxial switch
Subject Sage SP4T dc to 12 ghz sma coaxial switch
Ad is submitted by poster:

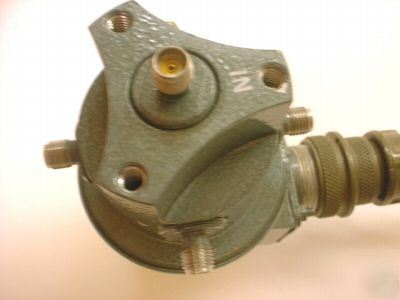

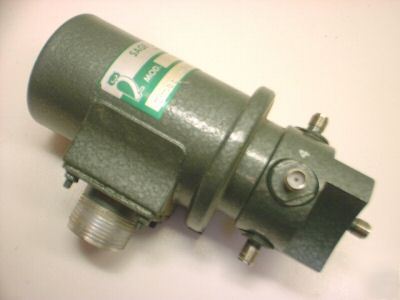

Sage SP4T DC to 12 GHz SMA Coaxial Switch
Sage model SAM4900-E. Canon plug not included. Frequency range dc to 12.0 GHz.
VSWR 1.3:1 max. from dc to 8 GHz; 1.5:1 max. from 8 to 12 GHz.
Average Power @ 1 GHz: 300 Watts; Peak Power: 3 kW
Insertion Loss, (dB max).: DC to 5 GHz: 0.3; 5 GHz to 12 GHz: 0.5
Isolation, min (dB) between adjacent 60 deg. positions: 40
between all other positions: 50
Operating voltage: 28 VDC nominal; 24 to 32 VDC
* Arizona residents add 6.1% Sales Tax
repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our
rules (on front page).
Posted By: Mavis Craig
Contact: Mavis-Craig@repair--parts.com (Mavis Craig) (this is a temporary forwarding address).
