New ( ) u.s. industrial 10' x 1/4" hydraulic shear


For Sale: New ( ) u.s. industrial 10' x 1/4" hydraulic shear


Subject New ( ) u.s. industrial 10' x 1/4" hydraulic shear

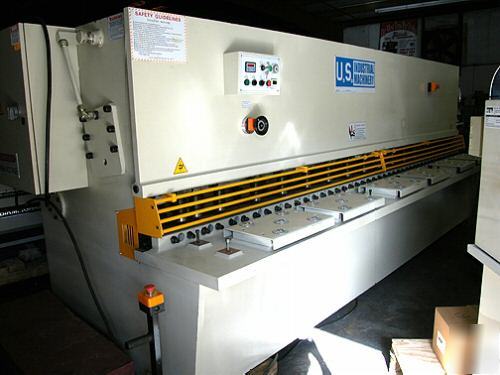

Ad is submitted by poster: ONE (1) NEW U.S. INDUSTRIAL 10’ X 1/4” HYDRAULIC SHEAR Model Number: US1025
STANDARD EQUIPMENT: (All below comes with the machine)
Squaring Arm Bolt on table segments…qty of 3
High Carbon, High Chrome Shear Blades Hold-downs faced w/anti-mar neoprene
Quantity of 24, 1” ball transfers Swing Beam Design Manual Quick Change Blade gap adj. Pressure Sensing Hold downs Squaring Arm, 43.5” from blade to end Electric
stroke adjustment Stroke Counter Operator control console
Front-controlled power back gauge Shadow lighting
Blade Guard, Micro switch protected Low noise gear pump
Hydraulic, Electrical Overload Protection 3 support arms
Automatic Swing-up on back gauge
Shearing Capacity 1/4” Mild Steel @ 65000 PSI
Adjustment Range Of Back Gauge 0.75”-36”
Hydraulic Oil Capacity 71 Gal.
Dimensions (L x W x H) 12.5’ x 5’ x 5’
PRICE FOB MEMPHIS TN……………..…...………….………. $22,990.00
Equipped with Material Support/Drop Chute…............................................$ 995.00
TOTAL PRICE, FOB MEMPHIS TN…………................................. $23,985.00
3-Axis CNC Programmable Back Gauge .........................................$ 3,990.00*
Touch-screen operated. Controls back gauge depth, blade gap
and stroke length 10 program storage capacity, Can be operated
6 Foot Squaring Arm........................................................ $ 1,295.00
8 Foot Squaring Arm.........................................................$ 1,495.00
10 Foot Squaring Arm.......................................................$ 1,695.00
Pneumatic Sheet Support.................................................$ 2,950.00
48” Back Gauge.................................................................$ 1,450.00
TRAINING............................................................................$750.00/DAY Plus travel
