Repair Parts -- new and used -- moderated newsgroup for trading > Plastic Welders
> New fluke 115 professional true rms multimeter
New fluke 115 professional true rms multimeter
For Sale: New fluke 115 professional true rms multimeter
Subject New fluke 115 professional true rms multimeter
Ad is submitted by poster:

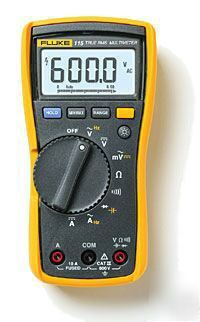

Fluke 115C Professional TRUE RMS Multimeter
Designed by electricians. Engineered by Fluke.
Compact true-rms meter for field service technicians. The Fluke 115c is the solution for a wide variety of electrical and electronic testing applications.
* Large white LED backlight to work in poorly lit areas
* Min/Max/Average to record signal fluctuations
* CAT III 600 V safety rated
All inputs are protected to CE, IEN61010-1 CAT III 600V. UL, CSA, TÃœV listed and VDE.
Maximum voltage between any terminal and earth ground
6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2
6,000 counts, updates 4 per second
33 segments, updates 32 per second
9 volt Alkaline, NEDA 1604A/ IEC 6LR61
± ([% of reading] + [counts]): 0.5% + 2
± ([% of reading] + [counts]): 0.5% + 2
1.0 % + 3 (dc, 45 Hz to 500 Hz)2.0 % + 3 (500 Hz to 1 kHz)
1.0 % + 3 (dc, 45 Hz to 500 Hz)2.0 % + 3 (500 Hz to 1 kHz)
Beeper on < 20 ?, off > 250 ?; detectsopens or shorts of 500 ?s or longer.
AC amps true-rms (45 Hz to 500Hz)
20 A overload for 30-seconds max
20 A overload for 30-seconds max
1) All ac voltage ranges exept Auto - V / Lo-Z are specified from 1% to 100% of range. Auto - V / Lo-Z is specified from 0.0V.
2) Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage.
2) Frequency is ac coupled, 5Hz to 30 kHz for ac voltage
Mechanical & General Specifications
167 x 84 x 46 mm (6.57" x 3.31" x 1.82")
CE, EN61010 600V CAT III,1000V CAT II, CMC
All our Multimeters are provided one year warrantee by us from the date you make a purchase. An replacement or repairment will be provided by us for free when a faulty is developed within the warrantee.
repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our
rules (on front page).
Posted By: Lea Phillips
Contact: Lea.phillips@repair--parts.com (Lea Phillips) (this is a temporary forwarding address).
