Anritsu MW9076 MW9076D1 otdr 1310 1450 1550 1625 nm
For Sale: Anritsu MW9076 MW9076D1 otdr 1310 1450 1550 1625 nm
Subject Anritsu MW9076 MW9076D1 otdr 1310 1450 1550 1625 nm
Ad is submitted by poster:
Includes any remaining manufacturer warranty.
We also provide a 14 day warranty.
The new MW9076 mini-OTDR series can perform a measurement three to five times faster than the well received, conventional MW9070B. The MW9076D1 is a four-wavelength OTDR. The four-wavelength OTDR can measure the chromatic dispersion characteristics from one end of an optical fiber. Two types of color displays with high resolution (5cm) and many sampling points (50000 points) are available for indoor and outdoor use. The MW9076 series shows superior basic performance that enables a wide dynamic range and a short dead zone. It supports the construction and maintenance of the optical fiber cables. Moreover, using this OTDR, it is possible not only to quickly charge a lithium-ion battery but also to indicate the remaining battery charge.

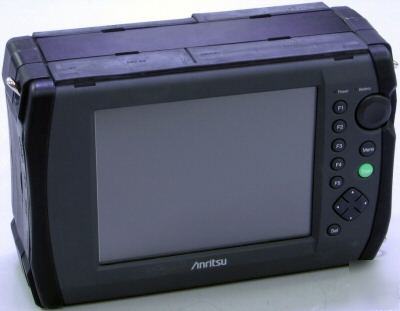

* (1) Anritsu MW9076D1 OTDR
* (1) Anritsu MU250000A Display
* Simple measurement of chromatic dispersion from one end of an optical fiber
* Measurement in 10 s (Full-Auto mode), 0.15 s real-time sweep
* 5 cm high resolution, 50,000 sampling points
* 8.4 inch TFT-LCD color display
* Optical Fiber: Single Mode
* Wavelength: 1310nm, 1410nm, 1550nm, 1625nm
* Dynamic Range: 34/33/32/29.5 dB
* Dead zone (Fresnel, back-scattered): 3/25 m
* Chromatic dispersion: Yes
* Light source function: No
NOTES: Power supply not included. You will only recieve what is shown in the pictures.
