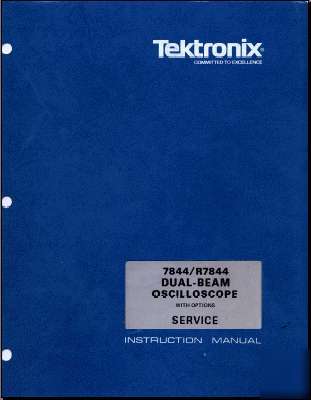

Tektronix 7844 Service Manual (with Options) in both Very High and in Standard Resolution PDF on CD
Why settle for just one resolution? You get them both!
Think you've seen it cheaper or better? Have any questions? Check the FAQ, please.
As "bonus" material, includes the Tektronix Semiconductor Parts Catalog, plus an interesting and informative Articles PDF. Also, because so often TM500 series power modules/plugins are used in conjunction with the 7000 series instruments, this CD also includes a fully bookmarked, hyperlinked and text-searchable scan of the entire "TM500 Rear Interface Data Book", a "TM500 Modular Test & Measurement Instruments" 44 Page Brochure and the Publication "Suggested Power Supply Circuits for The TM500 Blank Plug-In Kit" at no additional charge!
These PDFs cover the Tektronix 7844 Oscilloscope. They are scanned from the original manufacturer's manual. The scans came out well, and all information available in the original manual is available here.
Two PDFs of the manual are provided, in two resolutions. One is:
Text with Drawings at 600dpi black and white
Schematics at 600dpi black and white
Text with photos at 600dpi grayscale with contrast adjusted
Schematics, board overlays that have color notes at 600dpi 256 colors
This resolution looks nice, but for many purposes uses excessive resources. It's kind of like riding to work every day on a tractor. You can copy the large file to the hard drive to achieve better performance, but having that be a necessity is certainly of no benefit to you. Therefore, although it's great to have this resolution for those times you need higher definition (printing), we include a second scan in more normal resolutions for daily research and use on the bench.
The second scan is done in resolutions that vary depending on individual page content, but are never higher than needed to produce a useable quality, quickly navigable file that will do the job without consuming more time and resources than are needed.
On the CD you'll receive the large "very high resolution" file, plus the smaller, faster and often more useable text-searchable version. ALL original manual pages are supplied. Some vendors proudly advertise page counts and file sizes, but since those counts and sizes are very often artificially inflated with advertising, shareware begging letters and/or blank pages, we refrain from joining them and instead will tell you that these manuals are complete and are scanned in the specified resolutions.
