New pmi kollmorgen S6M4H/S6T servodisc dc motor
For Sale: New pmi kollmorgen S6M4H/S6T servodisc dc motor
Subject New pmi kollmorgen S6M4H/S6T servodisc dc motor
Ad is submitted by poster:

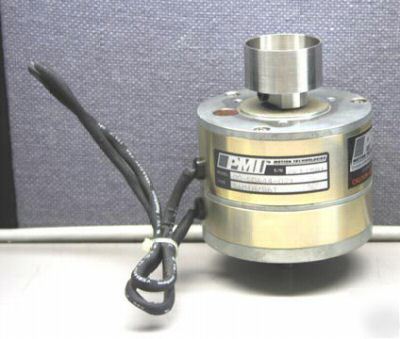

PMI Technologies / Kollmorgen S6M4H S-Series ServoDisc Motor (051206602150)
This does not mean that the unit doesn’t work, only that we have not tested or checked it out.
This may also mean that we are not knowledgeable in that specific item.
Please call MONIQUE Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions
between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time.
The Item may vary from picture as manufacture may change model appearance.
All information, including description, specifications and features are from a manufacturers
data sheet or manual and are subject to change without notice.
Meaning that all information included in the description, specifications and features
What you see is what you get! If it doesn’t show it you probably won’t get it!
PMI Technologies / Kollmorgen S6M4H S-Series ServoDisc Motor
* Model Number: 00-S0644-021
* 21 to 85 oz-in (15-60 N-cm) Continuous Torque
* 3.39†to 4.37†Outer Diameter Round Frame
* Motor Lengths Less Than 2â€
* S-Series ServoDisc motors employ the unique Kollmorgen flat disc armature. The ironless, low inertia armature delivers high acceleration and zero cogging in an exceptionally compact package.
* Rugged housings and mil-type connectors added to S-Series motors protect the motors and optional integral components such as encoders, tachometers and fail-safe brakes. They have been designed for harsh industrial environments where protection from damaging elements is essential.
* Extremely good speed control with zero cogging and low RFI
* Flat ServoDisc motors are ideal for many applications:
* Save space and weight in applications requiring a low profile motor
* Large torsional stiffness for precision control of speed and acceleration
* Peak Torque: 214 oz-in / 151 N-cm
* Rated Continuous Torque at 25 Celsius: 21 oz-in / 15 N-cm
* Rated Continuous Torque at 40 Celsius: 19 oz-in / 13 N-cm
* Rated Power Output: 46 Watts
* Maximum Recommended Speed: 6000 RPM
* Continuous Stall Torque: 20 oz-in / 14 N-cm
* Rated Terminal Voltage: 17.7 Volts
* Rated Continuous Current 5.20 Amps
* Continuous Stall Current: 4.8 Amps
* Terminal Resistance ±10%: 1.207 Ohms
* Armature Resistance ±10%: 0.940 Ohms
* Back EMF Constant ±10%: 3.15 V/KRPM
* Torque Constant ±10%: 4.26 oz-in/Amp
* Viscous Damping Constant: 0.2 oz-in KRPM / 0.1 N-cm/KRPM
* Armature Inductance: <100 µH
* Temperature Coefficient of KE: -.020%/°Celsius Rise
* Number of Cummutator Bars: 82
* Moment of Inertia: 0.00085 oz-in-sec2 / 0.060 kg-cm2
* Static Friction Torque: 0.9 oz-in / 0.6 N-cm
* Diameter: 3.39†in. / 86.1mm
* Length: 1.61†in. / 40.9mm
* Peak Acceleration: 251.9 kRad/s2
* Mechanical Time Constant: 6.16 ms
* Electrical Time Constant: <0.11 ms
* Continuous Power Rate: 3.53 kW/sec
* Thermal Resistance at Rated Speed: 2.70° Celsius/Watts
* Thermal Resistance at Stall: 3.32° Celsius/Watts
* Output Voltage: 0.75 Volts/KRPM
* Maximum Ripple Peak to Peak: 1.5%
* Linearity of Output Voltage: 0.06%
* Minimum Load Resistance: 1000 Ohms
