New dwyer 1950-0-2F explosion proof pressure switch
For Sale: New dwyer 1950-0-2F explosion proof pressure switch
Subject New dwyer 1950-0-2F explosion proof pressure switch
Ad is submitted by poster:
NEW DWYER SERIES 1950 EXPLOSION-PROOF DIFFERENTIAL PRESSURE SWITCH (020106601020)
This does not mean that the unit doesn’t work, only that we have not tested or checked it out.
This may also mean that we are not knowledgeable in that specific item.
Please call MONIQUE Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions
between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time.
The Item may vary from picture as manufacture may change model appearance.
All information, including description, specifications and features are from a manufacturers
data sheet or manual and are subject to change without notice.
Meaning that all information included in the description, specifications and features
What you see is what you get! If it doesn’t show it you probably won’t get it!

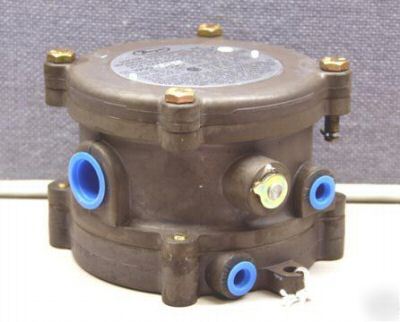

NEW Dwyer Series 1950 Explosion-Proof Differential Pressure Switch
* Easy access to the SPDT switch for electrical hook-up is provided by removing the top plate of the three-part aluminum housing. Adjustment to the set point of the switch can be made without disassembling the housing. The unit is very compact, about half the weight and bulk of equivalent conventional explosion-proof switches.
* Service: Air and non-combustible, compatible gases.
* Wetted Materials: Consult factory.
* Temperature Limits: -30 to 130°F (-34.4 to 54.4°C) for 1950-02.
* Pressure Limits: Continuous: 1950’s - 45? w.c. (0.11 bar) Surge: 1950’s - 10 PSI (0.69 bar)
* Enclosure Rating: IP64, NEMA 3, 7 and 9.
* Switch Type: Single-pole double-throw (SPDT)
. * Electrical Rating: 15 A @, 125, 250, 480 VAC, 60 Hz. Resistive 1/8 HP @ 125 VAC, 1/4 HP @ 250 VAC, 60 Hz
* Electrical Connections: 3 screw type, common, normally open and normally closed
* Process Connections: 1/8? female NPT
* Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations
* Set Point Adjustment: Screw type on top of housing
* Agency Approvals: CE, UL, CSA, FM
