Ko lee tool and cutter grinder, model sa 960
For Sale: Ko lee tool and cutter grinder, model sa 960
Subject Ko lee tool and cutter grinder, model sa 960
Ad is submitted by poster:

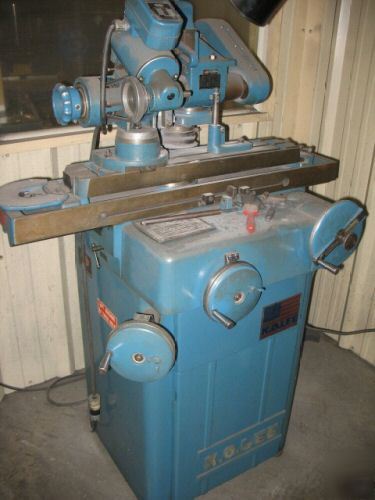

KO Lee Tool and Cutter Grinder, Model SA 960,
SWING OVER TABLE ............................. 8-1/4"
DISTANCE BETWEEN TAILSTOCKS ..................... 22"
TABLE WORKING SURFACE ............... 5-1/4" X 27-1/4
SUB TABLE .................................. 8" X 38"
LONGITUDINAL TABLE TRAVERSE ..................... 14"
TABLE FEED PER REV. OF HANDWHEEL:
FAST ..................................... 2-13/16"
SLOW ........................................ 9/16"
CROSS FEED .................................. 7 -1/4"
FEED PER REV. OF HANDWHEEL (.001" GRAD.)...... 0.100"
VERTICAL MOVEMENT OF COLUMN ...................... 7"
FEED PER REV. OF HANDWHEEL (.001" GRAD.) ..... 0.050"
COLUMN DIAMETER .................................. 4"
MINIMUM/MAXIMUM DISTANCE CENTERLINE
OF WHEEL SHAFT TO TABLE ........... 3-3/4" / 10-3/4"
MAXIMUM DISTANCE FROM COLUMN TO
SPINDLE 90 DEG.TO TABLE ..................... 4-1/8"
TABLE SWIVELS 3" PER FT., 15 DEG.
EITHER SIDE OF CENTER.................... 225 DEGREE
WHEEL HEAD SWIVEL ........................ 360 DEGREE
MAX. CROSSFEED SURFACE GRINDING W/6" WHEEL .. 4- 1/8"
(K.O. LEE "UTILITY" WHEELHEAD) ............. 3450 RPM
APPROXIMATE MACHINE WEIGHT ................ 1,080 LBS

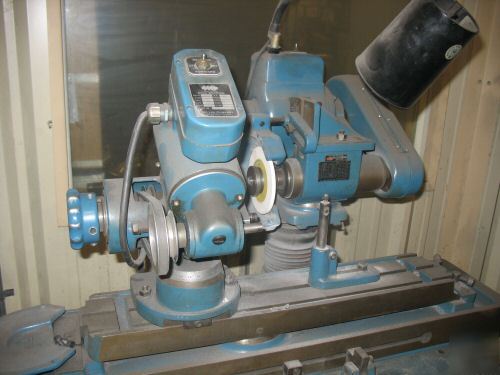

K.O. LEE "UTLITY" WHEELHEAD W/1/2 H.P. MOTOR

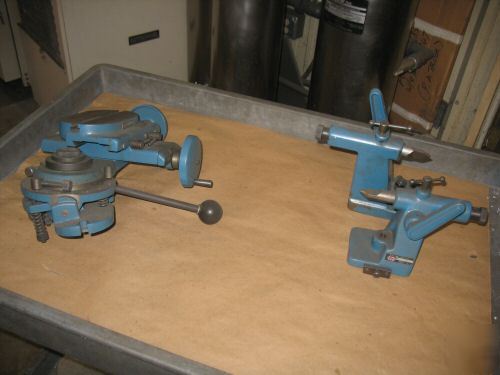

Motorized Work Head Model B6043A
Radius Attachement, Model Ba 986
Questions call dave @ (***)-399-8133
