#KF12 deckel univ "copy-mill" pantograph engraver 24727
For Sale: #KF12 deckel univ "copy-mill" pantograph engraver 24727
Subject #KF12 deckel univ "copy-mill" pantograph engraver 24727
Ad is submitted by poster:

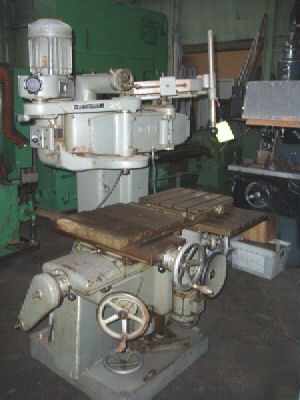

#KF12 DECKEL UNIVERSAL "COPY-MILL" PANTOGRAPH ENGRAVER
Drag Table - Saddle Elevating Motor
Stationary Worktable Dimensions........ 9-3/4" x 27-1/2"
Stationary Copy Holder Table........... 16-7/8" x 23-5/8"
Supplemental Worktable Top............. 17-3/4" x 17-3/4"
Drag Table, Clamping Area.............. 15-3/4" x 15-3/4"
Spindle Speeds, Range.................. 60 to 10000 RPM
Down Feed Range........................ .003 to .015 IPM
Saddle Travel Speed.................... 15 IPM
Distance, Cutter To Stylus............. 17-3/4"
Guiding Mechanism...................... 1-7/8"
Horizontal Travel Of Tool Slide........ 11-3/4"
Worktable Longitudinal Travel.......... 11-3/4"
Worktable Transverse Travel............ 7-7/8"
Spindle Nose To Worktable.............. 18-5/8"
Tracing Stylus To Copyholder Table 16-7/8"
Spindle To Supplemental Worktable 16-3/4"
To Stationary Worktable................ 3-7/8"
To Drag Table.......................... 13-3/4"
Overall Dimensions, L x W x H.......... 53" x 63" x 77"
Weight, Approximately.................. 3190 LBS.
PRICE: F.O.B. OUR WAREHOUSE............ $2,450.00
All machines/equipment subject to prior sale.
repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our
rules (on front page).
Posted By: Rachael Atkins
Contact: Rachael_atkins@repair--parts.com (Rachael Atkins) (this is a temporary forwarding address).
