Intel xscale PXA270DB evaluation board
For Sale: Intel xscale PXA270DB evaluation board
Subject Intel xscale PXA270DB evaluation board
Ad is submitted by poster:

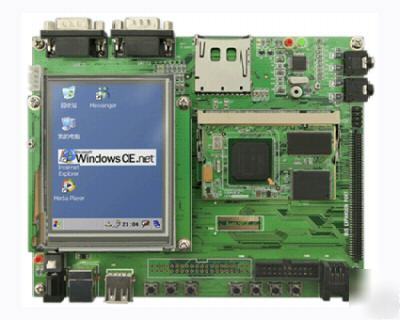

Intel XScale PXA270DB Evaluation Board Intel XScale PXA270DB Evaluation Board
- An Evaluation Board for Intel XScale PXA270 Processor
- LCD,AC97,IrDA,MMC/SD/CF Card, USB, Bluetooth, Ethernet, Camera &
- Capable of supporting PXA255 CPU board
- Providing with WindowsCE 4.2.net BSP
The Intel®PXA270 processor is designed to meet the growing demands of a new generation of leading-edge embedded products and is ideal for the low-power framework of battery-powered devices. It is the first Intel XScale® technology-based processor to include Intel® Wireless MMX™ technology which is able to work up to 520MHz. This featured technology enables high-performance multimedia acceleration with an industry proven instruction set. Another innovative feature is the Intel® Quick Capture technology, which provides one of the industry's most flexible and powerful camera interfaces for capturing digital images and video. The new capabilities of Wireless Intel SpeedStep®Power Manager technology provide a quantum leap forward in low power operation, while maintaining the highest levels of performance.
Ø Dimensions: 67x39mm (CPU board), 167x133 (expansion board)
Ø Working temperature: –40°C to 85°C ambient temperature range available
Ø Processor: Intel XScale PXA270 can work up to 520MHz
Ø Power input: DC +5.0V or USB power supply
Ø 64M SDRAM, Intel Strata Flash 32MB
Ø Two-way earphone output and one MIC interface
Ø Three UARTs (one for Full Function UART, one for Bluetooth UART and one for IrDA UART which supported by an optional expansion board)
Ø SD/MMC, hardware supports SDIO, supports SD/MMC Ethernet Image Download
Ø CS8900 10M Ethernet module (supports Ethernet Debug , Ethernet Image Download)
Ø 7 keys (one for hardware reset, one for software reset, one for power on/off, the other four for user defined)
Ø 3 LEDs (one for power indication, the other two are controlled by two GPIOs)
Ø Expansion interfaces (LCD, Touch Screen, PWM, BUS, UART, AC97, Camera&Keyboard)
We provide WindowCE 4.2.net BSP and even a well-round and steady-going driver source code for this XScale PXA270 evaluation board. Source code provided includes the following test modules:
Device booting code includes downloading function for WinCE image file
LCD backlight driver source code
USB Slave interface driver code
Hardware Abstraction Layer source code
Display area: 53.64(H)×71.52(V)mm [catercorner 8.9cm]
Image processing: RGB vertical scanning
Image size: 0.2235(H)×0.2235(V)mm
Module size: 65.0(H)×86.2(V)×5(D)mm (not include FPC)
Touch: four-wire resistance type
RS232 voltage level conversion module
Function: TTL convert to RS232, TX and RX
Chip: Cirrus Logic CS8900, 10BASE-T
Support Ethernet Debug, Ethernet Image Download
Interface form: 100Pin, 1.27mm space, dual connector pins
LED indicator: LINK and ACT two LEDs
Ø 1x PXA270DB Evaluation Board (with Sharp 3.5" TFT LCD, CS8900 10M Ethernet module, RS232 voltage level conversion module)
- WindowsCE 4.2.net BSP and software examples
