Bend Tech SE 3.0 layout Software

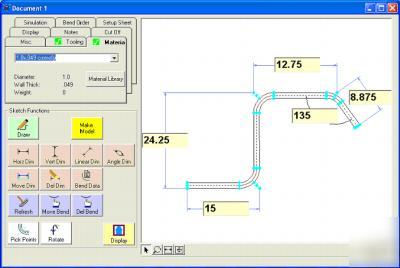

Bend-Tech SE Software Version 3.0Software for the tube & pipe bending professional! Bend-Tech SE consists of several input interfaces; Including pre-defined Templates, 2D Custom, 3D Custom, Sketch and an XYZ interface. Bend-Tech SE's sketch interface uses the state of the art 'go first think second' concept. Quickly draw a side profile add known dimensions and let Bend-Tech SE do the rest. Bend-Tech SE creates a two scale dimensioned drawing and a shaded three dimensional model which can be rotated to any angle. The final step is to allow Bend-Tech SE to create the flat layout print. The flat layout uses user defined preferences for dimension styles and locations.
Bend-Tech SE's XYZ interface uses a grid concept for data input. Define the number of bends, give each bend a x, y and z location, adjust individual bend CLR's if desired, and select the next button to automatically create the flay layout. Apex is used for most bends, however, tangent and perpendicular bend locations can be used for bends close or equal to 180 degrees.
Feature List: (100% of EZ-3D functionality plus the following)
* Parametric Style easy design input
* Pick points for dimensional placement
* Dimensions are horizontal, vertical, linear and angular
* Adjust CLR or bend allowance for each bend
* Bend allowance & K-factor available (adjustable for each bend)
* Rotate sections to create a true 3D part
* Move dimensions to create a printable document
* Rotate 3D shaded model to any 3D angle
* Create prints of flat layout, shaded model & title block
* Dimension; start of bend, end of bend & center of bend, from either direction
* Dimension with decimals or fractions
* Includes cut length, bend angles, CLR or inside radius, rotation angle & bend order
* Limit of 50 bends per part
* Use apex, tangent or perpendicular for bend placement (adjustable for each bend)
* Adjust CLR or bend allowance for each bend
* 3D shaded model is updated at every key stroke
* Graphical screen verification
* Material and Tooling database
* Wizards for bend allowance discovery
* 80 page printed manual and tutorial
* Telephone, email and forum support
LRA (length, rotation and angle) output available with the LRA upgrade. System requirements are Windows 98 and newer. However, Windows XP is recommended.
NOTE: Normally a stocked item, if not, lead times may exist. Feel free to contact me for availability
