600X metallurgical metallographic trinocular microscope
For Sale: 600X metallurgical metallographic trinocular microscope
Subject 600X metallurgical metallographic trinocular microscope
Ad is submitted by poster:
Search in titles & descriptions

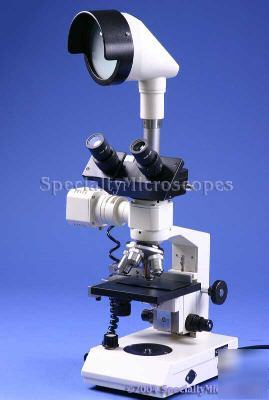

METALLURGICAL - METALLOGRAPHIC
EPI - ILLUMINATION TRINOCULAR UPRIGHT MICROSCOPE WITH ALUMINUM CARRYING CASE
Projection Screen NOT Included.
This system is capable of this type of connection.
Projection Screen NOT Included.
This system is capable of this type of connection.
Camera and Attachment NOT Included.
Cartridge Brass Under 4x objective
Dead Mild Steel - 100x Image 10x Objective
Cartridge Brass Photo Through Trinocular Port
This system is capable of this type of connection.
Digital Camera - PC Connectivity.
This system is capable of this type of connection.
* Excellent Quality Trinocular Professional Metallurgical - Metallographic Microscope!
* Ideal for Identification and Analysis of the Structure of Different Metals and Alloys.
* Great for Detailed Inspection of a Metallic Surface.
* Research Grade Performance with Highly Advanced Features and Optics!
* Perfect for Metallurgical Laboratories, Foundries, Silicon Wafer Inspection, Industrial Applications, and Quality Control Labs!
* Great for Viewing Opaque Surfaces - Light Travels Through the Objective and Reflects off Surface of Object and Back Into Objective!
* No Worries about how to get Light to the Specimen's Surface!
* Epi-Illumination Microscopy System: Light From Side Housing goes through the Horizontal Shaft, Reflects Down through Objective to the Specimen, Reflects off the Specimen, and Back into the Objective and then to the Eyepieces. Also known as Reflected Light Microscopy.
* Photograph Your Own Specimens!
* Have Your Own Complete Digital Video Microscopy System!
* Capture Images With Your Computer!
* Display Images on a High Resolution CCTV Monitor or Television!
* Videotape What You See Under the Microscope!
* Versatility - Included Trinocular Port Greatly Expands the Usefulness adding Photographic/Video Capability!
* Other (not included) accessories may be required for connecting digital/film cameras, CCD cameras and Video cameras. Call or Email us your specific requirements.
* Eight Magnifications: 40x, 60x, 100x, 150x, 200x, 300x, 400x, and 600x.
* Wide Field 10x and 15x Eyepiece Sets.
* Four Objectives: 4x, 10x, 20x, and 40x.
* Spring Loaded 20x and 40x Objectives for Protection.
* 45 Degree Inclined Trinocular Head, Rotatable 360 Degrees.
* Adjusts to the Distance Between your Eyes: 55 to 75mm InterPupillary Distance.
* Diopter Adjustment on Both Oculars to Correct for Your Specific Vision Needs.
* Two Filters Included: Blue (Daylight) and Green.
* Iris Diaphragm Adjustment for Better Light Control.
* Variable Intensity 20W Tungsten Halogen Illumination.
* Graduated Mechanical Stage Size 120mm x 120mm.
* Low Position Coaxial X-Y Specimen Holder Movement Knobs - Range of Movement: 75mm (X-Direction) x 40mm (Y-Direction).
* Fine and Coarse Focusing Knobs on Both Sides of Microscope.
* Maximum Distance From Bottom of Longest Objective to Top of Stage: 35mm.
* Stage has Unique Feature allowing it to be Height Adjustable Relative to Focusing Block.
* Fine Adjustment Division: 0.002mm.
* Rack and Pinion Steel Gears for Focus Movement.
* Adjustable Screw-Stop to Limit Coarse Range to Protect Specimens.
* Total Overall Height of Microscope: 400mm.
* Instrument Weight: 13.5 lbs.
* Comes with Instruction Manual, Dust Cover, Extra Bulb, and Lens Cleaning Cloth.
* Optional Polarizer and Analyzer for great Polarized Images.
* Bright and Clear Projected Images on Optional 90mm Diameter Glass Dome Projector Screen.
* Optional Screen is Great for Ease of Viewing and for Training Applications where many need to View!
* Optional Measuring Capability: Call Us Today to Discuss Your Measuring Needs and How This Microscope Will Work for You!
* Manufactured under ISO: 9001 Standards.
* Precision Ground Glass Lens.
* Quality Construction, Metal Frame.
* 110 VAC (email about 220V availability).
5 Year Manufacturer's Warranty
* The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
* If your system needs repair, simply let us know and we will see that it is back in service ASAP.
RISK FREE - MONEY BACK GUARANTEE - 10 DAY TRIAL PERIOD!
QUALITY SERVICE AFTER THE SALE!
If you have questions or issues after the sale, please call our technicians. They are just as happy to talk to you after the sale as before. We hire skilled sales technicians who are required to have a Bachelor’s Degree in biology, engineering, or related science fields.
