Mori seiki zl-25MC/1000 4 axis turning center
For Sale: Mori seiki zl-25MC/1000 4 axis turning center
Subject Mori seiki zl-25MC/1000 4 axis turning center
Ad is submitted by poster:

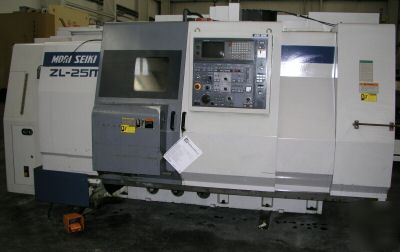

MORI-SEIKI ZL-25MC/1000 4-AXIS TURNING CENTER
Serial # 159 New 1996 Model # ZL-25MC/1000
Swing Over Cross Slide: 13.78"
Maximum Turning Diameter: 13.39"
Maximum Turning Length: 40.55"
X-Axis Travel, Turret #1: 11.3"
Z-Axis Travel, Turret #1: 42.9"
X-Axis Travel, Turret #2: 5.7"
Z-Axis Travel, Turret #2: 42.9"
Spindle Speeds: 35 to 3500 RPM

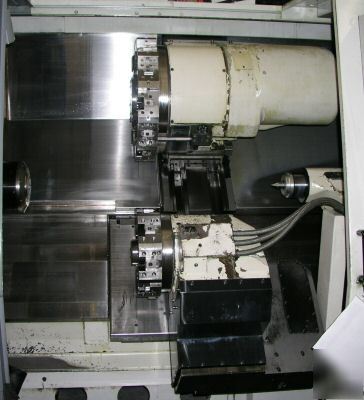

Upper Turret Tools: 12 (6 Live Tool Positions)
Lower Turret Tools: 8 (No Live Stations)
Shank Height for Square Tools: 1"
Shank Diameter for Boring Bar: 2"
Turret Index Time: .7 Seconds Per Station
Live Tool Speeds: 80 to 2000 RPM
Rapid Feed Rate, X-Axis: 472.4 IPM
Rapid Feed Rate, Z-Axis: 590.6 IPM
Cutting Feed Rate Per Revolution, X-Axis: .0001" to 9.9"
Cutting Feed Rate Per Revolution, Z-Axis: .0001" to 9.9"
Jog Feed Rate, X & Z Axis: 0 to 50 IPM
Tailstock Quill Diameter: 4.3"
Tailstock Quill Taper: #5 Morse
Upper Turret Live Tooling with Full C-Axis Spindle

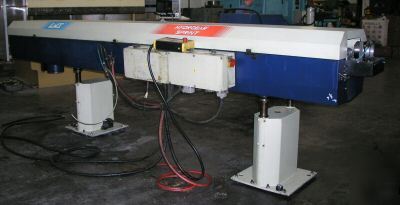

LNS Hydrobar Spring S2 Bar Feeder
Serial # 16177-96, Model # S2, New 1996
Air Pressure Required: 75 to 90 PSI
Equipped with Rear Mounted Bar Loader, Large Assortment of Bushings
Cool Jet Systems High Pressure Coolant System
Serial # 3193, Model # 70-30SF
Rated Capacity: 8 GPM at 1000 PSI
6 HP Motor, Wired for 3 Phase, 208-230 Volts
Required Inlet Pressure: 20 to 60 PSI

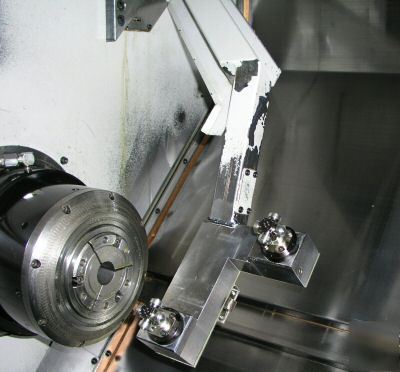

Exit Conveyor for Parts Catcher, Approx. 96" Long

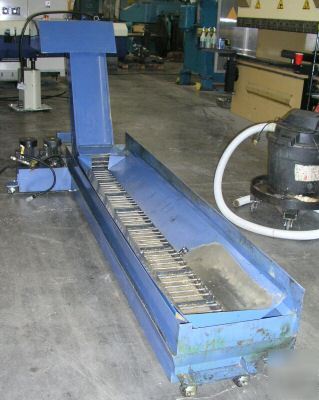

Full Length Chip Conveyor with Right Side Exit
Tool Presetter for Front and Rear Turret
All Available Manuals for Lathe, Bar Feeder and Coolant System
Approx. 9,800 Hours Cutting Brass
18.5 KW Motor, 30 Minute Rating
Machine: 203" L-R x 84" F-B x 84" H x 19,100 Lb.
Bar Feed: 177" L-R x 31" F-B x 52" H
Exit Conveyor: 101" L-R x 12" F-B x 30" H
Chip Conveyor: 106" L-R x 41" F-B x 55" H
Coolant System: 36" L-R x 17" F-B x 61" H
Bar Tube Rack: 78" L-R x 30" F-B x 56" H
Bar Feed Loader: 100" L-R x 48" F-B x 48" H
(2) Skids: 36" F-B x 24" L-R x 16" H Each
PRICE: Loaded on Truck, Our Warehouse, York, PA
