Hitek power OL8000/104/28 3 phase high voltage 100KV
For Sale: Hitek power OL8000/104/28 3 phase high voltage 100KV
Subject Hitek power OL8000/104/28 3 phase high voltage 100KV
Ad is submitted by poster:

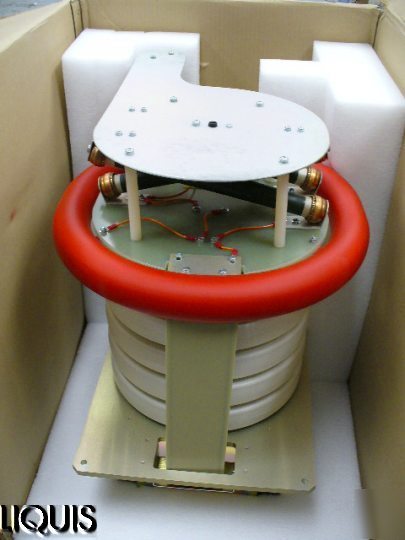

Hitek Power OL8000/104/28 3 Phase High Voltage 100kV
Model: OL8000/104/28 Power Supply
Specifications (includes Data Plate information if applicable): The OL8000 has been designed to offer a continuous output of 100kV at 80mA, with a high level of stability for use in an Ion Implantation environment.
* Input Voltage: 187 to 229 Volts AC, 50/60Hz, three phase.
* Input Current: Not to exceed 34 Amps per phase.
* Output Voltage: 0 to 100kV DC.
* Calibration between Voltage Demand, Output Voltage and Voltage Monitor +/- 0.5% or 100V, whichever is greater.
* Output Current: 0 to 80 mA.
* Line Regulation: Less than 16 volts change in output voltage for +/- 10% change in input.
* Load Regulation: Less than 30 volts change in output voltage for a change in load current between 20 mA and 80 mA.
* Recovery Time: 0.1 seconds to within 1% of set voltage.
* Ripple: Less than 140 Volts peak to peak.
* Temperature Co-efficient: Less than 0.0125%/C.
* Operating Temperature Range: 0 to 40 degrees Celsius.
* Storage Temperature Range: -40 to +70 degrees Celsius.
* Humidity: 90% maximum relative humidity.
* Altitude: Sea level to 2000 metres.
Overall Physical Condition: In good condition. Some minor scratches on top.
For computer and industrial accessories, the following applies:
* Hard drives are checked in Fdisk and checked to see if recognized in BIOS and then erased/DoD wiped. No other implied condition is represented by the description above. Any preinstalled software on the hard drive(s) is removed. This includes any Operating System (Windows).
* Money Orders. All Money Orders must be drawn from a US Bank. We do not accept Money Orders drawn from a Non-US Financial Institution.
* Cash. This will only be accepted if paying for the item in person.
* Our offices are open from 9am-4pm Monday-Friday Central Time. We are closed on the weekends. Please allow 1-3 business days to reply to all e-mails.
repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our
rules (on front page).
Posted By: Sylvia Young
Contact: sylvia-young@repair--parts.com (Sylvia Young) (this is a temporary forwarding address).
