New port 1830-c optical power meter with 818-ir & 883-ir
For Sale: New port 1830-c optical power meter with 818-ir & 883-ir
Subject New port 1830-c optical power meter with 818-ir & 883-ir
Ad is submitted by poster:

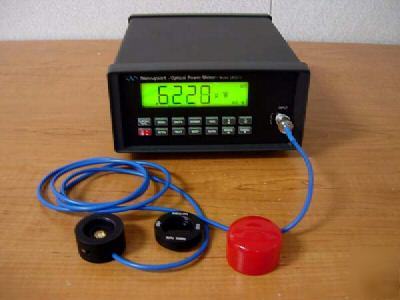

Newport 1830-C Picowatt Digital Optical Power Meter
with 818-IR Photo-sensor (CAL. Module included) & 883-IR Optical Filter
Picowatt Digital Optical Power Meter
The Model 1830C Power Meter is a high-resolution autoranging picoammeter compatible with all of Newport’s 818 Series low-power silicon, germanium and indium gallium arsenide detectors. It is the most popular Newport model used in production testing of fiber optic components.
DC power measurements can be displayed in units of W and dBm on the instrument’s 4 1/2 digit annunciated, backlit, wide-angle view LCD, providing wide dynamic range with power sensitivities down to 100 fW and full scale readings up to 2 W, with the OD-3 calibrated optical attenuator. Various detector accessories allow for free-space, as well as for fiber coupled power measurements.
Relative power measurements, in reference to a previously stored value, can also be performed with the result displayed either as a ratio or in dB.
A built-in beeper, which changes its frequency as a function of incident optical power, can be utilized to optimize optical beam alignment.
RS-232C and IEEE-488 (GPIB) interfaces are both provided as standard features, allowing the remote control of the instrument with a personal computer.
* Compact, Full Featured, Benchtop Instrument
* Large, 4.5 Digit, Backlit, Wideview LCD
* Display Power in Watts or dBM
* Interfaces Newport Si, Ge, & InGaAs Detectors
* Optical Measurements from 190-1800nm
* Power Measurements from 100fW - 2W
* RS-232C and GPIB Built-In Interfaces
Newport 1830-C + 818-IR with Cal. Module + 883-IR x 1
* 10 day DOA Guarantee by BoteQ.com
* Local pick up is not offered.
