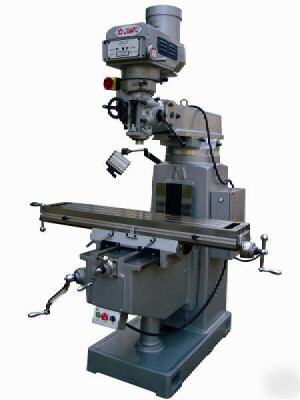

New jinpu vertical knee mill milling machine CDM4-v
For Sale: New jinpu vertical knee mill milling machine CDM4-v
Subject New jinpu vertical knee mill milling machine CDM4-v
Ad is submitted by poster:
Vertical Turret Milling Machine
Manual Knee Mill - 10"x52" Table - 3Hp - Box Ways
P.O. Box 3071 - 9728 Variel Ave. - Chatsworth, CA 91311
Toll Free: (***) 532-2636 • Phone: (***) 727-0957 • Fax: (***) 727-1073
http:// /Mills.html#jinpu
Tested Quality - ISO 9001 Certified
3 Hp, 3-Phase 220/440VAC Spindle Motor
Powered Quill - Up and Down - Feed Select: 0.0015, 0.003, 0.006 in/rev
Tempered and Carburized Chrome Molybdenum Steel Spindle Head
ABEC-7 Angular Contact Precision Spindle Bearings
R8 Spindle Taper - Factory Tested To 0.0004" Maximum TIR
Ram Rotation (Deg) 90 left/right, 0-45 front/back, 360 Orbital
Induction Hardened & Precision Ground Table & Ways
PBC-2 Phosphor Bronze Adjustable Lead Screw Nuts
Full Length Precision Ground Gibbs with Double Adjustments
Turcite-B X&Y Saddle Ways - Precision Hand Scraping Throughout
T-Slots (3 x 0.63 x 2.48") - Way Guards - Double Travel Locks
Control Box with 110/220VAC Outlets - On/Off/E-Stop Switch Box and Indicator Light
Manual 1-Shot Lubrication System - Automatic Optional
35 Watt Halogen Work Lamp - 50 Watt Optional
Draw Bar, Tool Box With Operation Manual And Test Data
Includes Leveling Pads - Lift Eye - Rear Ram Eye
SC250 Superior Rigidity - Uniquely Structured Castings
*Local Dealer Participation Required - See Dealer for Details
Specifications subject to change without notice
Vices, Collet and Clamping Kits
From 1986 in Hong Kong, Kin Ah Industries has expanded to four major machine tool manufacturing facilities in China
including a foundry covering a total of over 100 acres. A family owned and operated manufacturing group, Kin Ah
manufactures Manual Machines under the Jinpu label. Core capabilities include Iron Casting, Heat Treatment,
Machining and Precision Assembly. Products include Vertical Turret Milling Machines, Bed-Type Milling Machines,
CNC Milling Machines, Machining Centers, CNC Lathes, E.D.M. and Accessories.
P.O. Box 3071 - 9728 Variel Ave. - Chatsworth, CA 91311
Toll Free: (***) 532-2636 • Phone: (***) 727-0957 • Fax: (***) 727-1073
http:// /Mills.html#jinpu
Any questions? Please call us at 1-(***)-532-2636
Visit us at for all your machine/machine tool needs.
We also specialize in Digital Readout's.
