Hydraulic rotary draw bender
For Sale: Hydraulic rotary draw bender
Subject Hydraulic rotary draw bender
Ad is submitted by poster:

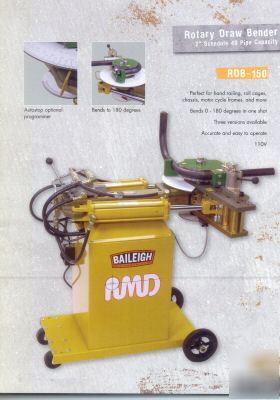

NEW ROTARY DRAW BENDER HYDRAULIC "Model 150-S ","Standard without the Autostop"Continuous Bending up to a max of 206 degrees without stopping or racheting.Variable speed controlled by operator,Quick release counter die system allows bends to pull out in seconds with out disassembly.Bend can be advanced after machine stops,saving on material and set-up.High visible degree dia; for accuracy.Dies are color coded and interchangeable with all RMD products.Industrial Grade hydraulics reduces productions time.
NOTE: " DIES ARE NOT NCLUDED with Machine. Contact us for Die Pricing & Die Packages.
5. Power:20Amps,110V,1PH,60HZ
9. Pipe ID: 2" Scheule 40 Wall
10. Tube OD: 2-1/2" .125 "Wall
11. Chromolly: 2" .125 " Wall
13. Flat Stock: 1-1/2" x 1/2"
14. Angle Stock: 2" x 2" x 1/4"
16. Aluminum OD: 2-1/2" .156 wall
17. Stainless Steel: 2-3/8" .125" wall
19. Delivery: Stock to 10 days based on current schedules
Options: Available in 2 additional models
Model RDB-150-AS Std with Auto Stop Programmer: $ 6,295.00
Model RDB 175 High Speed Unit : $6,995.00
