Giddings & lewis bickford single spindle drill (14979)
For Sale: Giddings & lewis bickford single spindle drill (14979)
Subject Giddings & lewis bickford single spindle drill (14979)
Ad is submitted by poster:

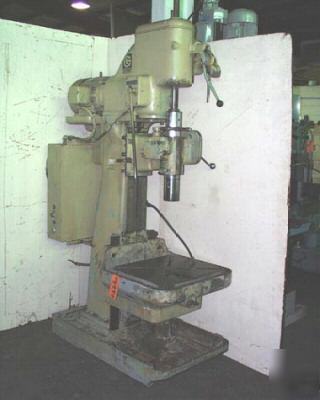

28" G. & L. Bickford, 4 MT, 60-1000 RPM, 7-1/2 HP, 24" x 21" Tbl., 1973
MODEL.........................................28"
SERIAL NUMBER.................................973-01371-73 Year: 1973
Capacity Swing (Center Of Spdl. To Front
Of Lower Column...............14-1/2"
Capacity Swing (Center Of Spdl. To Face
Of Upper Column...............13-1/2"
Capacity Swing (Measured On Plane Of Table)...13-1/4"
Max. Distance From Spindle To Base............3' 10-5/8"
Min. Distance, Spindle To Base................18"
Max. Distance From Spindle To Table...........2' 9-3/4"
Min. Distance, Floor To Table Top.............19-1/8"
Vertical Adjustment Of Table..................10-3/4"
Vertical Adjustment Of Sliding Head...........17-1/2"
Vertical Travel Of Spdl. By Power Feed........10-1/2"
Vertical Travel Of Spdl. By Hand Feed.........11-1/8"
Working Surface Of Table......................21" x 24"
Standard Feeds................................(9) .005" To .043"
Standard Speeds...............................(12) 60 To 1000 RPM
Spdl. Nose, Diameter & Length.................3-15/16" x 5-7/8"
Spdl. Taper...................................No.4 Morse
Spdl. Diameter At Least Section...............1-5/8"
Spdl. Sleeve, Diameter........................4"
Code Name.....................................Yamky
7-1/2 HP Motor, 1175 RPM 230/460/60/3
1/4 HP Coolant Pump Motor, 1725 RPM 230/460/60/3
Forward & Reverse Electric Switch, W/ Electrical Cabinet On Drill
All items are sold SPECIFICATIONS SUBJECT TO VERIFICATIONS.
All items are offered locally and could be sold previous to end of store listing.
