20" x 80" polamco heavy-duty engine lathe #22705
For Sale: 20" x 80" polamco heavy-duty engine lathe #22705
Subject 20" x 80" polamco heavy-duty engine lathe #22705
Ad is submitted by poster:

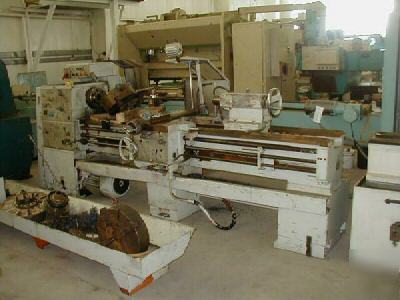

20" x 80" POLAMCO HEAVY-DUTY ENGINE LATHE
New 1978, Serial No 10288, Model TUR50,
Threading (Inch-Metric Full-Length Lead Screw)
15" 3-Jaw Chuck w/Jaws - 16" 4-Jaw Chuck w/Jaws
Hardened & Ground Gears & Bedways
Threading Dial - Micrometer Carriage Stop
Hole Thru Spindle...................... 2.75"
Swing Over Bed Ways, Rated............. 20"
Swing Over Cross-Slide................. 11.5"
Distance Between Centers............... 80"
Cross Slide Travel..................... 12.5"
Compound-Rest Travel................... 6"
Tailstock, Quill Diameter.............. 3.5"
Tailstock, Spindle Travel.............. 8"
Tailstock, Spindle Taper............... #5 MT
(21) Spindle Speeds, Range............. 18 to 1800 RPM
(42) Carriage Longitudinal Feeds....... .0031 to .121 IPR
(42) Cross-Slide Cross Feeds........... .0016 to .060 IPR
(42) Inch Thread Changes, Range........ 1 to 88 TPI
(42) Diametral Thread Changes, Range... 1 to 88 DP
(42) Modular Thread Changes, Range..... 1 to 88 MM
Power Rapid Traverse Rate.............. 220 IPM
Main Motor, Horsepower................. 15/10 HP
Weight Approximately................... 7000 LBS
PRICE: F.O.B. OUR WAREHOUSE........... $12,500.00
All machines/equipment subject to prior sale.
repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our
rules (on front page).
Posted By: Eleanor Valencia
Contact: Eleanorvalencia@repair--parts.com (Eleanor Valencia) (this is a temporary forwarding address).
