1.5" x 30" technidrill bta-230-1.500-50-1 gun drill
For Sale: 1.5" x 30" technidrill bta-230-1.500-50-1 gun drill
Subject 1.5" x 30" technidrill bta-230-1.500-50-1 gun drill
Ad is submitted by poster:

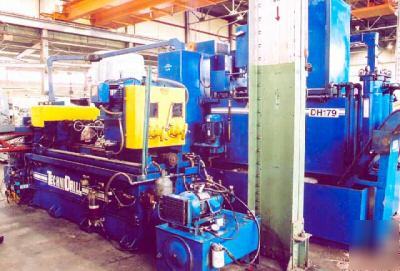

1.5" X 30" TECHNIDRILL MODEL BTA-230-1.500-50-1 2-SPINDLE BTA EJECTOR TYPE DEEP HOLE DRILLING MACHINE

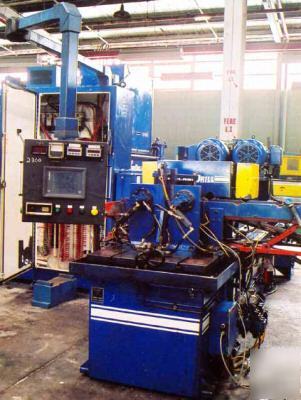

ABB Spindle Speed. Controllers. (2) 25 HP Spindle Drives. Allen Bradley SLC-500 PLC Controller. Operators Control Panel With Cuttler Hammer Touchscreen Display. Durant Load Meters For The Left And Right Spindles. Thumb Switch For Spindle Speed RPM. Spindle RPM Digital Display. Touch Pad For Servo Driven Feed Rates. Push Button Controls For Master Start; Stop And Emergency Retract. Technidrill Model 30-750-80 Variable High Pressure Coolant/Filtration System With 750 Gallon Capacity Rated At 80 GPM With (2) 20 HP Coolant Pumps. 2 HP Recirculating Pump. 10 HP Filter/Suction Pump. Magnetic Chip Conveyor. Model HAR7500 Koolant Kooler Refrigeration System. Hinged Type Tool Steady With Interchangeable Guide Bushings. Tailstock Carriage With Coolant Supply Carriage With Internal Chip Box. Coolant Chip Return And Interchangeable Collets. Chip Guards.
**This Machine Is Presently Equipped With A Walking Loading Beam (Conveyor) And Controls Which Can Easily Be Modified Or Removed.
Drilling Range Solid Steel 1.5"
Spindle Speeds (Variable) 800-2400 RPM
Table Size (T-Slotted) 32" x 46"
Coolant Reservoir Capacity 750 Gallons
