Fluke optiview pro opv-pro network analyzer w/ wan vlan
For Sale: Fluke optiview pro opv-pro network analyzer w/ wan vlan
Subject Fluke optiview pro opv-pro network analyzer w/ wan vlan
Ad is submitted by poster:
Fluke OPTIVIEW PRO, OPV-PRO Network Analyzer With Options:
Included Accessories Listed at the Bottom.
Be sure to add us to your Favorites list!.
Warranty: 30 Day Exchange Warranty
Fluke OptiView Intergrated Network Analyzer PRO
Retailed NEW for around $26,000.00
Features: Complete network vision in seconds Combines seven layer protocol analysis, active discovery, SNMP device analysis, RMON2 traffic analysis and physical layer testing into a mobile solution Design and user interface equally effective whether the unit is carried as a portable device or placed semi-permanently on a network link Web enabled remote analysis allows up to seven users to access a single unit simultaneously.
The Analyzer is designed for troubleshooting and monitoring Local Area Networks (LANs). The analyzer tests all seven OSI layers. It tests from the cable to the application layer and everything in between, so problems have nowhere to hide.
What could be more powerful than all of your network test tools put together?
Meet the OptiView? Integrated Network Analyzer. It combines all the network monitoring and troubleshooting capabilities you need in one power-packed handheld tool. Including a high-performance protocol analyzer. A fast cable tester. RMON2 probe. Making this the only portable test tool you need.
And OptiView's "whole" is smarter and easier to use than the sum of its parts-giving you new levels of facility, functionality and feature richness that an armful of standalone tools can't deliver. With the OptiView analyzer, it's simply faster and easier to get a comprehensive view of your network and isolate any problems.
* Complete network vision in seconds
* Combines seven layer protocol analysis, active discovery, SNMP device analysis, RMON2 traffic analysis and physical layer testing into a mobile solution
* Design and user interface equally effective whether the unit is carried as a portable device or placed semi-permanently on a network link
* Web enabled remote analysis allows up to seven users to access a single unit simultaneously

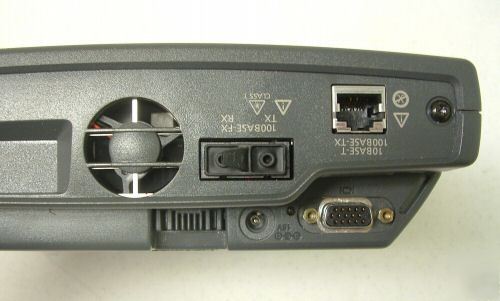

* Direct connection to 100BASE-FX (Pro Models)
* Packet capture and decode (Pro Model)
* RMON II traffic analysis (Pro Model)
* Gigabit testing capabilities (Pro Gigabit Model)
* Cable testing (Copper & Fiber)
* Active discovery in switched networks
* Fully automatic IP configuration-even without DHCP
Optiview Twisted-Pair Detail Screen
Now one tool is all it takes to analyze your entire network. The OptiView analyzer combines a high-performance protocol analyzer and cable tester together with the advanced features to keep you on top of your network.
In a single handheld unit, OptiView integrates:
As soon as it's connected to the network, the Optiview analyzer starts its discovery process. This process included real time results of devices, networks and problems.
The OptiView analyzer screen will display your network as network type. Networks and all associated devices are discovered by traffic monitoring and actively querying the hosts.
The OptiView analyzer Problem Discovery Screen displays all network hosts that may be experiencing problems. Problems are reported according to severity - error, warning or informational. Resolved problems are also displayed.
The Overview Screen displays critical information about a selected device. The device detail can include:
* Remote monitoring capabilities
When connected to a copper media network, the OptiView analyzer will automatically perform a cable test and provide you with the cable length to the attached device even into a live switch or hub port.
Select the Twisted-Pair Detail Screen and see:
* Anomalies (shorts, opens and split pairs)
Packet Capture, Filter and Decode
Even at gigabit speeds, the OptiView analyzer is capable of full line-rate packet capture and decode.
For more selective packet captures, use the context sensitive filter and the packet capture engine is automatically populated with the source and/or source and destination addresses of your selection.
As you have come to expect from a traditional protocol analyzer, the OptiView analyzers'allows you to set the capture buffer size, slice size, buffer configuration and various other parameters.
This unit is Part of the Fluke Family which conceits of some of the highest quality Testing Equipment in the industry. For instance in Copper and Fiber Testing, Fluke has the DSP-4000, DSP-4100, DSP-4300, DTX-1200 & DTX-1800 Cable Analyzers. In Networking Fluke has the Fluke OneTouch and NetTest EtherScope Network Assistant Analyzer and so many more. That's why we come to trust Fluke for the right tester for the right Job.
This Unit has been fully tested and is in excellent Condition.

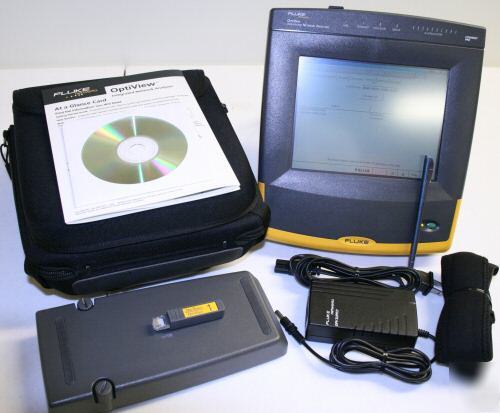

* (1) Fluke Optiview PRO OPV-PRO

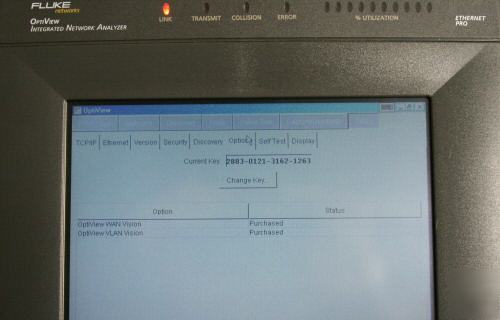

* Option: Optiview WAN Vision
* Option: Optiview VLAN Vision
