For Sale: Fluke 117 electrician's multimeter with non-contactvolt
Subject Fluke 117 electrician's multimeter with non-contactvolt
Ad is submitted by poster:
For all Fluke products allow 5-7 extra days. Thank You.

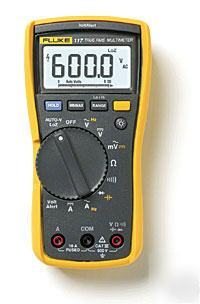

Compact true-rms meter for commercial applications. The Fluke 117 is the ideal meter for demanding settings like commercial buildings, hospitals and schools. The 117 includes integrated non-contact voltage detection to help get the job done faster.
* VoltAlertâ„¢ technology for non-contact voltage detection
* AutoVolt automatic ac/dc voltage selection
* Low input impedance: helps prevent false readings due to ghost voltage
* Large white LED backlight to work in poorly lit areas
* True-rms for accurate measurements on non-linear loads
* Measures 10 A (20 A overload for 30-seconds)
* Resistance, continuity, frequency and capacitance
* Min/Max/Average with elapsed time to record signal fluctuations
* Compact ergonomic design for one-handed operation
* Compatible with optional magnetic hanger (ToolPakâ„¢) for hands free operation
* CAT III 600 V safety rated
Maximum voltage between any terminal and earth ground
6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2
11 A, 1000 V FAST Fuse (Fluke PN 803293)
Digital 6,000 counts, updates 4 per second
33 segments, updates 32 per second
9 volt Alkaline, NEDA 1604A/ IEC 6LR61
400 hours typical, without backlight
± ([% of reading] + [counts]): 0.5% + 2
± ([% of reading] + [counts]): 0.5% + 2
2.0 % + 3 (dc, 45 Hz to 500 Hz)
1.0 % + 3 (dc, 45 Hz to 500 Hz)
1.0 % + 3 (dc, 45 Hz to 500 Hz)
Beeper on < 20 Ω, off > 250 Ω; detects opens or shorts of 500 μs or longer.
Temperature2 (Type-K thermocouple)
AC amps true-rms (45 Hz to 500 Hz)
20 A continuous overload for 30 seconds max
20 A continuous overload for 30 seconds max
1) All ac voltage ranges exept Auto - V / Lo-Z are specified from 1% to 100% of range. Auto - V / Lo-Z is specified from 0.0V.
2) Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage.
