> 4.33" sacem table type horizontal boring mill 25068
4.33" sacem table type horizontal boring mill 25068
For Sale: 4.33" sacem table type horizontal boring mill 25068
Subject 4.33" sacem table type horizontal boring mill 25068
Ad is submitted by poster:

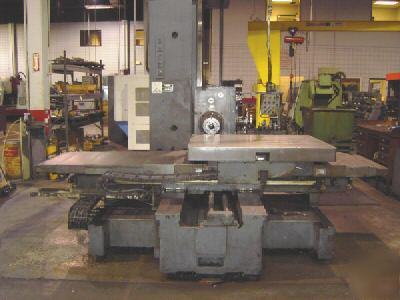

4.33" SACEM TABLE TYPE HORIZONTAL BORING MILL
New 1980, Serial No 9236, Model MST110XC
Built-In 47" x 57" Power Rotary Table
Spindle Diameter........................ 4.33"
Spindle Taper........................... #50
Spindle Travel (Z-Axis)................. 31.5"
Table Cross Travel (X-Axis)............. 67"
Spindle-Head Vertical Travel (Y-Axis) 47.24"
Saddle Travel (W-Axis).................. 47.24"
Table Dimensions, W x L................. 47" x 57"
Table Load Capacity, Maximum............ 8800 LBS
(18) Spindle Speeds, Range.............. 12 to 1200 RPM
(27) Spindle Feeds, Range............... .0012 to 5 IPR
(15) Metric Steps, Range................ .25 to 12 MM
(12) Whitworth Steps, Range............. 2 to 96 TPI
Table Rapid Traverse, All Directions.... 120 IPM
Spindle Motor, Horsepower............... 20 HP
Weight Approximately.................... 29,000 LBS
PRICE: F.O.B. OUR WAREHOUSE............ $34,500.00
All machines/equipment subject to prior sale.
repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our
rules (on front page).
Posted By: Jose Webb
Contact: j-webb@repair--parts.com (Jose Webb) (this is a temporary forwarding address).
