> New kurt 6" D675 vise & 4 new kurt made alum soft jaws
New kurt 6" D675 vise & 4 new kurt made alum soft jaws
For Sale: New kurt 6" D675 vise & 4 new kurt made alum soft jaws
Subject New kurt 6" D675 vise & 4 new kurt made alum soft jaws
Ad is submitted by poster:

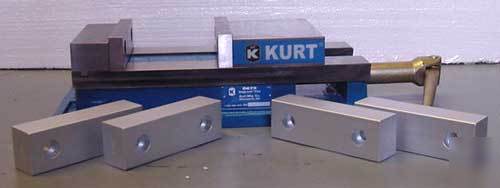

New Kurt 6" D675 Vise & 4 NEW Kurt Made Alum Soft Jaws
New Kurt 6' D675 Vise & 4 NEW Kurt Made Alum Soft Jaws
New Kurt 6' D675 Vise & 4 NEW Kurt Made Alum Soft Jaws
New Kurt 6' D675 Vise & 4 NEW Kurt Made Alum Soft Jaws
If you are the winner, click the button above to check out right now!
New Kurt 6' D675 Vise & 4 NEW Kurt Made Alum Soft Jaws
New Kurt 6' D675 Vise & 4 NEW Kurt Made Alum Soft Jaws
The original Kurt Anglock D-Series vises are designed for precision part clamping on basic machine tools such as knee-type mills, grinders and machining centers. D-Series vises are ideal for use in running production parts where datums, flatness and parallelism is important. You can precision bore, tap, drill, grind and finish with high accuracy on most parts made of die cast aluminum, steel, and iron in your Kurt Anglock vises. No other brand can give you the time proven accuracy of the Kurt Anglock vises. All Kurt vises have a friction reducing, needle bearing, thrust collar. The needle bearing increases jaw clamping pressure.
D675 The D675 has a new vise body with four major improvements: * Powder coat paint resists peeling.
* Machined rail allows precision alignment.
* Stationary jaw features an integral key and larger fasteners that reduces deflection by 50%.
Bed height matched to size 2.875" (73.025mm) ±0.0005". Patented “O†ring pull down feature is standard. Parts from the previous body style are interchangeable with this new one.
Features of All D-Series Vises Include:* AngLock design assures the movable jaw does not lift.
* 80,000-PSI ductile iron body.
* Matching of bed height ±0.001" available at an additional cost for the D40 and D100 vises.
* Matching of the keyway to the stationary jaw ±0.001" is available at additional cost.
* Some models available in metric version.
2 Pairs of KURT Machinable Aluminum Jaw Plates
6" Aluminum (6061-T6) soft jaw. Fits all Kurt 6" vises. Reversible top to bottom and front to back, (Counter bore both sides).
Extra thickness for carving part shapes into jaw plate.
5.969" L x 1.500" W x 1.874" H.
Everything in this kit is made by KURT. The accessories are not cheap knock offs.
*
*
*
