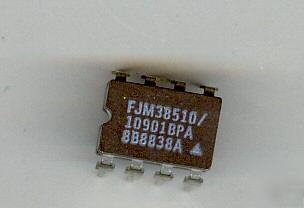

Integrated circuit JM3851010901BPA ic electronics ,
For Sale: Integrated circuit JM3851010901BPA ic electronics ,
Subject Integrated circuit JM3851010901BPA ic electronics ,
Ad is submitted by poster:
IF WE ARE NOT ANSWERING YOUR EMAILS PLEASE
CHECK THE MESSAGE CENTER ........
THANKS FOR VISITING D.O.Enterprises
NE555...D, P, PS, OR PW PACKAGE
SLFS022F–SEPTEMBER 1973–REVISED JUNE 2006
· Timing From Microseconds to Hours · Adjustable Duty Cycle
· Astable or Monostable Operation · TTL-Compatible Output Can Sink or Source
These devices are precision timing circuits capable of producing accurate time delays or oscillation. In the
time-delay or Monostable mode of operation, the timed interval is controlled by a single external resistor and
capacitor network. In the astable mode of operation, the frequency and duty cycle can be controlled
independently with two external resistors and a single external capacitor.
The threshold and trigger levels normally are two-thirds and one-third, respectively, of VCC. These levels can be
altered by use of the control-voltage terminal. When the trigger input falls below the trigger level, the flip-flop is
set, and the output goes high. If the trigger input is above the trigger level and the threshold input is above the
threshold level, the flip-flop is reset and the output is low. The reset (RESET) input can override all other inputs
and can be used to initiate a new timing cycle. When RESET goes low, the flip-flop is reset, and the output goes
low. When the output is low, a low-impedance path is provided between discharge ( DISCH ) and ground.
The output circuit is capable of sinking or sourcing current up to 200 mA. Operation is specified for supplies of
5 V to 15 V. With a 5-V supply, output levels are compatible with TTL inputs.
IF YOU HAVE ANY QUESTIONS PLEASE EMAIL US AT:
WE HERE AT D.O.E. SPECIALIZING IN ONLY ONE THING.
SO PLEASE CHECK US OUT OFTEN..... .
PRICES FOR S&H ARE FOR U.S.A .ONLY.
AND WILL TRY TO MAKE YOUR EXPERIENCE
( CALIFORNIA RESIDENTS MUST PAY SALES TAX)
THANKS WE APPRECIATE YOUR BUSINESS
VIEW AND SEARCH ALL THE ITEMS IN MY PICTURE GALLERY
