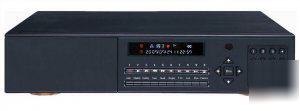

Four channel digital video recorder with two ide interf
For Sale: Four channel digital video recorder with two ide interf
Subject Four channel digital video recorder with two ide interf
Ad is submitted by poster:
This wholesale product has 4CH, H.264 compression, seperate access. It is compatible with VGA,USB,network and has RS485 PTZ controll, IE browse function. The VFD screen make it easy to operate and very useful.
Colours available- black; light golden: Please specify the colour(s) you require using the comments box in the online checkout process.
* Four separate audio-video road show and compressed audio and video simultaneously, without electronic amplification
* Four-channel, each channel can be individually installed
* MPEG4/H.264 video compression, a higher compression ratio, the more efficient hard disk space
* CIF/Half D1/D1 format images from the three definitions
* Adjustable frame count: 0.1 frames / sec to 25 frames / sec adjusted
* Stream since many stalls definition, image resolution options
* Four routes, input and two-way Alarm output to support mobile video and image detection alarm loss alarm
* Compatible with video, and real-time 4 -channel video monitoring the same time intervals
* Special paper specially designed video system, more than 10 times the life of hard disks
* The table inquiries, inquiries rapid, accurate search retrieval methods
* Internal network functions, IP protocol and support for LAN, WAN and dynamic ADSL network
* Compatible with two-way intercom network
Manufacturer Specification
* Video Signal: PAL (625 line, 50 field / sec); NTSC (525 lines / frame, 60 field / sec)
Composite Video: 1.0V p-p/75, BNC connector x 4
Composite Video: 1.0V p-p/75, BNC Connector x 2
* Audio Input: BNC connector x 4
* Audio Output: RCAx1 RCA audio output; RCA x 1 x 1 output cuts
* Alarm input: Non-voltage contact closure, the regular open - or closed, four-input
* Alarm output Non-voltage contact closure, always open, 2 Output
* NETWORK: 10/100M Ethernet port adaptive
Compatible with console and the camera control, RS485 interface x 1
* Compression options: CIF resolution 352 x 704 x 576 D1 288 Half-D1
* Compression Standard: MPEG4/H.264
Two IDE interface, and compatible with large hard disks over four blocks 300G
Adjustable seven stalls bitstream stall 100MB/: 1 hour / Road, two stalls 150MB/ hours / road
Three stalls 200MB/ hours / road, 4 hours stalls 250MB/ / road stall 300MB/ 5 hours / road
6 stall 350MB/ hours / road stall 400MB/ 7 hours / Road : 1~100MB/ own hours / Road
* Security functions: 128-bit data encryption password management
* Power: 220V(+/-10%)/50HZ, 50W (no hard disk)
Operating temperature : +5 ~ +50 deg; Humidity: 90%
Storage temperature : -20 ~ +70 deg; Humidity: 95%
* Size appearance: 432 x 96 x 375mm
* Language: Chinese, English
