40:1 dividing head indexing chart 2
For Sale: 40:1 dividing head indexing chart 2
Subject 40:1 dividing head indexing chart 2
Ad is submitted by poster:

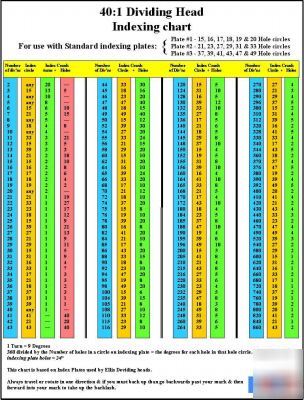

This is a 9 X 12 wall chart for using a dividing head that shows the crank rotation values & hole plate locations for indexing.
For use with a 40:1 dividing heads such as Ellis dividing heads as well as many others.
1 side covers 2 divisions thru 860 divisions using 15,16,17,18,19,20,21,23,27,29,31,33,37,39,41,43,47 & 49 hole indexing plates
The other side covers 42 thru 3960 divisions using 25,61,71,83,91,51,53,63,73,81,96,22,57,67,77,87,97,28,59,69,79,89 & 99 hole indexing plates.
Save time & not have to do the math every time you have to use your indexing or dividing head.
Printed in color on heavy card stock & laminated with 5mil lamination for durability & many years of use.
