#MP4G sip precision jig borer #24992

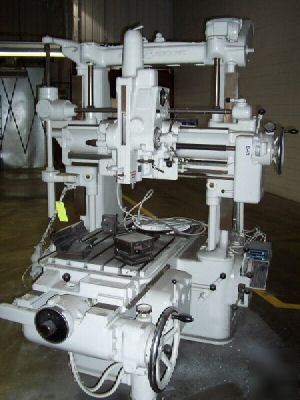

For Sale: #MP4G sip precision jig borer #24992
Subject #MP4G sip precision jig borer #24992
Ad is submitted by poster:
Approx. New 1950, Serial No 614, Model MP4G
Boring Capacity w/#F4E Tool Holder..... 9"
Drilling Capacity, Mild Steel.......... 1.5"
Drilling Capacity, Cast Iron........... 2"
Table Dimensions (Overall) W x L....... 23.6" x 27.5"
Table Working Surface, W x L........... 23.6" x 27.5"
Table Longitudinal Travel (X-Axis)..... 24"
Saddle Cross Travel (Y-Axis)........... 20"
Cross-Rail Vertical Travel (Z-Axis).... 23"
Spindle Quill Travel................... 7"
Spindle-Nose to Table, Minimum......... 7.875"
Spindle-Nose to Table, Maximum......... 31"
Spindle Internal Taper................. #4 MT
Spindle External Taper................. #4E "SIP"
(20) Spindle Speeds, Range............. 50 to 2000 RPM
(6) Power Spindle Feeds, Range......... .001 to .012 IPR
Measuring Reading on Auxilliary Scales .100"
Measuring Reading on Micrometer Drums.. .0005"
Measuring Reading on Micro Drum Vernier .00005"
Measuring Reading on Dial Indicator
of Depth Measuring Device.............. .0005"
Main Drive Motor, Horsepower/RPM....... 3 HP
Table Traverse Motor, Horsepower/RPM... 1/2 HP
Cross-Rail Traverse Motor, Horsepower.. 3/4 HP
Overall Dimensions, W x D.............. 6'8" x 6'10"
Overall Height......................... 8'10"
Weight, Approximately.................. 8500 LBS
PRICE: F.O.B. OUR WAREHOUSE........... $2,950.00
All machines/equipment subject to prior sale.
