Fluke networks 686 enterprise lanmeter CAT5 cable test
For Sale: Fluke networks 686 enterprise lanmeter CAT5 cable test
Subject Fluke networks 686 enterprise lanmeter CAT5 cable test
Ad is submitted by poster:
Fluke Networks 686 Enterprise LanMeter

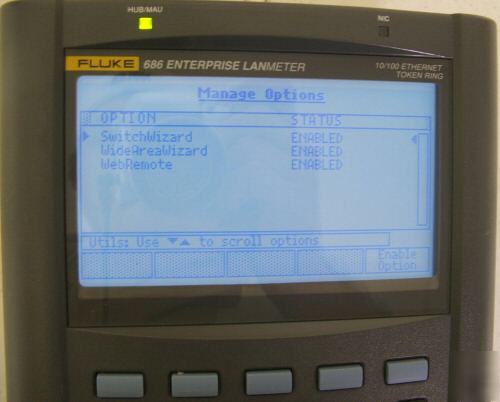

Enabled Options: Switch Wizard & Wide Area Wizard
Included Accessories Listed at the Bottom.
Be sure to add us to your Favorites list!.
Warranty: 30 Day Exchange Warranty
Fluke Networks 686 Enterprise LanMeter
* Troubleshoots and manages 10/100 Ethernet and Token Ring networks
* Frame relay, ISDN and T1/E1 troubleshooting
* Direct connectivity to test 100BASE-TX networks
* A large range of enhancement options for full network vision
* Auto-negotiate sensing capabilities Product Capabilities
The isolated nature of a switched network can be a nightmare for Network Engineers who are responsible for troubleshooting problems in these environments.
The Enterprise LANMeter Series provides you with troubleshooting and management capabilities for 10/100 Ethernet and Token Ring networks. With the SwitchWizard» and WideAreaWizard» options you can browse switch, router and other SNMP statistics in a graphical user friendly manner. You can also dig into frame relay, ISDN and T1/E1 configurations to check utilization and connectivity problems.
The new WebRemote Control Option lets you access the power of the Enterprise LANMeter regardless of where you are. Web access capability, which allows you to view troubleshooting and analysis information using your web browser, comes standard on LANMeter instruments with version 8.52 or higher. For existing 68X Enterprise LANMeter users, download the latest software version to get a 30-day trial of the WebRemote Control Option.
For 672, 675, 682 and 685 users, enhancement kits are available to allow you to convert your existing LANMeter product to a 683 or 686 Enterprise LANMeter capable of direct connection to Fast Ethernet networks. Additionally, our Priority Support Gold Members automatically receive a 20% discount on these enhancements.
Plummeting per-port costs for Fast Ethernet hubs and user demands for higher bandwidth to the desktop are forcing many networks to adopt 100BASE-TX as the technology of choice for growth and for replacement of aging hardware. To support this trend, Fluke added direct connectivity for 100BASE-TX to the already popular Enterprise LANMeter series test tools.
The 683 (10/100 Ethernet) and 686 (10/100 Ethernet, and Token Ring) Enterprise LANMeters take advantage of the support for Fast Ethernet offered by implementing a complete auto-negotiate sensing capability. Users may connect to 10 or 100 Mbps Ethernet drops indiscriminately, and the instrument will automatically detect which speed is present and link accordingly. Or, if advanced testing is appropriate, the user may configure 10 or 100 Mbps explicitly in order to force a connection at the desired speed.
0 m (0 ft) measures right up to connection point
BNC (ThickLAN) 600 m (2000 ft)
(BNC Connector): 0 ohms to 200 ohms
±(1% of reading +0.3 m (1 ft))
30 to 300 meters (100 to 1000 ft) ±2% of reading
The LANMeter time stamps the beginning and end of tests from an internal real-time clock.
Files may be saved internal to the unit. These files include screen captures, ASCII formatted scrolling lists and data log information. The File manager provides management for saved files by allowing export to a PC via the LANMeter serial port or E-Mail over a network connection.
A list of 512 addresses can be stored which establishes a symbolic name for MAC, IP, VINES IP and IPX addresses. Multiple station lists will support a maximum of 4096 stations.
The LANMeter analyzer's Flash ROM technology protects your investment by allowing software updates to be loaded quickly and easily from you PC via an RS-232 serial link.
Unshielded twisted pair LAN cables of all categories:
(100 ohm UTP category 3, 4, and 5)
Foil-screened twisted pair cables (100¬ ScTP, category 3, 4, and 5)
Shielded twisted pair cables (150¬, IBM Type 1, 6, and 9)
Coaxial cables: ThickLAN (10BASE5), ThinLAN (10BASE2), RG-58 Foam
TIA Link Committee standards for both channel and basic link, category 3, 4, and 5
ISO/IEC IS-11801 Class C, and D
IEEE 10BASE5, 10BASE2, and 10BASE-T
IEEE Token Ring 4 Mbps or 16 Mbps
IEEE 802.12 (100VG-AnyLAN), 4-UTP
The LANMeter automatically executes a series of measurements and compares the results against the selected network specification resulting in PASS/FAIL test results. Typical Autotest test time is 32 seconds. The applicable tests are described below:
Maximum Distance: depends upon the cable type
Accuracy: 0 to 30m: ±(1% of reading +0.5m;) 30 to 300m ±2% of reading
Twisted Pair Range: 50 ohms to 200 ohms
Coax Range: 25 ohms to 100 ohms
Accuracy: ±(5 ohms + 5% of reading)
PASS/FAIL on pairs called out in selected network specification.
500 ohms to 500 K ohms (± 10%) RJ-45
10 ohms to 200 ohms (± 10%) BNC
Up to 128 Autotest summary results
29.2 x 17.8 x 6.7 cm (11.5 x 7.0 x 2.65 in)
36 key Elastomeric with alphanumeric and dedicated keys
240 x 128 pixel bit-mapped LCD. (H x W) 12 x 6.5 cm [4.75" x 2.5"]
Removable/Rechargeable NiCad (9 Sub-C Cells) with average 3 hours operating time. Recharges in three hours.
Continuous use of the display backlight will reduce battery operating time by approximately 33%.

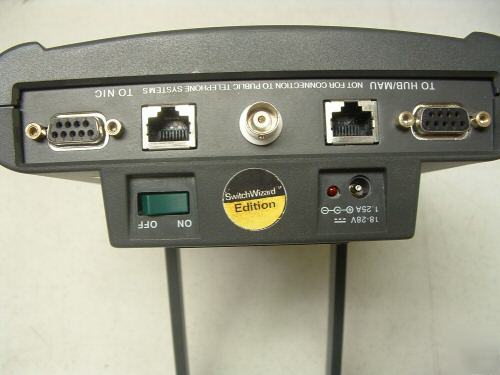

MAU Connector (RJ-45 and DB-9)
NIC Connector (RJ-45 and DB-9)

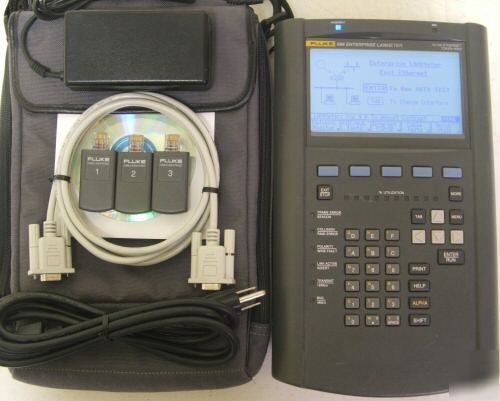

* Fluke 686 Enterprise LANMeter
