17"/17.75" x 78" leblond "regal" engine lathe #25056
For Sale: 17"/17.75" x 78" leblond "regal" engine lathe #25056
Subject 17"/17.75" x 78" leblond "regal" engine lathe #25056
Ad is submitted by poster:

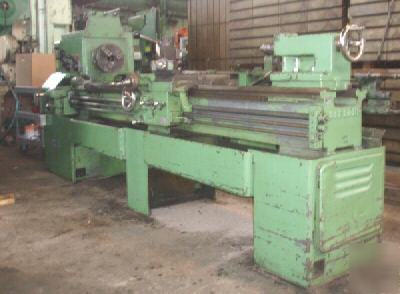

17"/17.75" x 78" LEBLOND "REGAL" ENGINE LATHE
New 1963, Serial No 4D1193, Series "REGAL"
Hard Ways - Micrometer Carriage Stop
Full Length Coolant-Chip Pan and Coolant System
Hole Thru Spindle...................... 1.5"
Swing Over Bed Ways, Rated............. 17"
Swing Over Bed Ways, Actual............ 17.75"
Swing Over Cross-Slide................. 10.75"
Distance Between Centers............... 78"
Cross-Slide Cross-Feed Travel.......... 11.25"
Tailstock, Spindle Travel.............. 7"
Tailstock, Spindle Taper............... #4 MT
(12) Spindle Speeds, Range............. 38 to 1500 RPM
(48) Carriage Longitudinal Feeds....... .0023 to .132 IPR
(48) Thread Changes, Range............. 2 to 112 TPI
Electrical System...................... 220-440/3/60
Overall Dimensions, L x D.............. 14'3" x 4'2"
Weight, Approximately.................. 4180 LBS
PRICE: F.O.B. OUR WAREHOUSE........... $6,950.00
All machines/equipment subject to prior sale.
repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our
rules (on front page).
Posted By: Lesley Atkins
Contact: Lesley.atkins@repair--parts.com (Lesley Atkins) (this is a temporary forwarding address).
