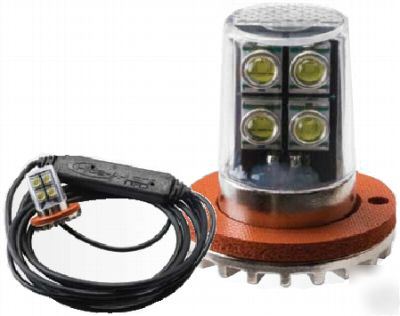

ECCO Hide-A-Way LED Warning Lights
The 9010 is a high intensity directional LED warning light specifically designed for vehicle headlight and tail light applications.
The LED design offers major advantages over strobe versions. All control electronics are situated in a sealed, in-line driver module so no remote power supply is required.
Multiple flash patterns are included and multiple units can be synchronized to flash alternately or simultaneously.
Additional benefits of LED technology include high intensity light output, low current draw and a long and maintenance free service life.
* 1-watt high-intensity LED’s provide exceptional warning.
16 Flash patterns including single, double, triple, quad, deci and cycle all.
Multiple heads are synchronizable (simultaneous or alternating operation).
In-line waterproof driver module eliminates the need for a remote power supply.
* Colorless when not illuminated.
UV stabilized polycarbonate lens, nickel plated housing and 9’ cable.
Flash patterns are selected by touching the blue wire momentarily to power, the LED head will cycle through the available patterns.
Each LED strobe is sold indivdually, for complete 4-strobe set enter quantity of 4 when purchasing.
This listing is for Clear LED strobe lights. Please contact first if you would like Amber, Blue, or Red. Pricing is subject to change for alternate colors.
Alternating/Simultaneous Flashing Patterns
The yellow wire on each LED head is used to determine alternating or simultaneous operation with other heads in the system that are connected using the blue wire. The yellow wire has no function when ‘Steady On’ flash pattern is selected.
* Connect the YELLOW wire to either POWER or GROUND
Heads with YELLOW connected to POWER fire SIMULTANEOUSLY with other heads connected to POWER
* Heads with YELLOW connected to GROUND fire SIMULTANEOUSLY with other heads connected to GROUND
Heads with YELLOW connected to POWER fire ALTERNATELY with other heads connected to GROUND
Note: The blue wires of all LED heads must be connected together for the alternating/simultaneous function to operate.

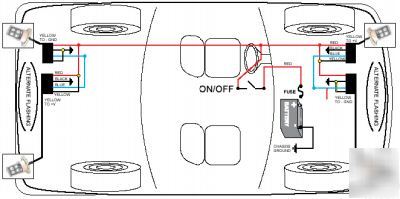

The diagram in image no. 3 shows a typical installation of 4 HIDE-A-LEDsâ„¢ using an on/off switch. The left and right side heads are configured to flash alternately with each other using the blue wire to connect the two with the yellow wire on one connected to ground and the yellow wire on the other connected to power.
Triple+Burst: 82.5 Triple + Burst FPM
Cycle All: Cycle through patterns 1 to 7
Double-Triple + Burst: 2 Double, 2 Triple + Burst cycle
Cycle Classic: 1 Double, 1 Quad, 2 Mega cycle
Quad-Mega: 3 Quad, 4 Mega cycle
Single-Quad: 2 Single, 2 Quad cycle
DeciBlast-Quad: 2 DeciBlast, 2 Quad cycle
Single-Triple-DeciBlast: 2 Single, 2 Triple, 2 DeciBlast cycle
Mega-Triple+Burst: 1 Mega, 1 Triple+Burst cycle
