Jlwcnc 3 axis dro axis linear scale kits mill seig X3
For Sale: Jlwcnc 3 axis dro axis linear scale kits mill seig X3
Subject Jlwcnc 3 axis dro axis linear scale kits mill seig X3
Ad is submitted by poster:

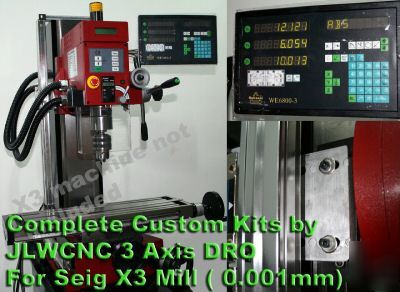

BRAND NEW 3 axis DRO + 3 AXIS LINEAR GLASS SCALE Kits
Special Design for Seig X3 Super Milling Machine.
Please refer to our inhouse X3 Super Mill ( we also stock this unit in 220V) Which you can visualized the professional quality of this kits.
This Kits is design specifically for X3 Super, which allow not only easy installation, but also with professional alignment of the scale, which is important for the scale operation life.
1 x Model 6800 Extended feature 3 Axis Digital Read Out Unit
1 xWTB5-600mm, 1 x WTA-250mm, 1 x WTA-250mm
3 x screw pack and spacer for DRO.
1 x English Manual - Setup & Operation
1 x Clear Plastic Dust Cover for DRO
3 x Glass Scale Protective Cover
1 x Swing Mounting Arm for DRO
The basic linear scale include hardware to install most other Mill system, But this kits is CUSTOM DESIGN for the Seig X3 Super which included following parts with the package:

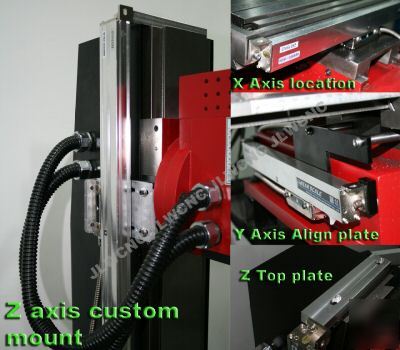

1 x Z Axis Top Mounting block ( Machine Aluminum parts w/ anodized black finished)
1 x Z Axis Mill head adapter plate ( Machine Aluminum parts w/ anodized black finished)
1 x Z Axis Custom L bracket ( cast Aluminum)
1 x Y Axis Extension Plate (Machine Aluminum parts w/ anodized black finished)
2 x Y Axis extension shaft (Steel)
2 x Y Axis angle alignment block (Machine Aluminum parts w/ anodized black finished)
Without above additional parts, installation will be a diffcult task.
This Kits comes with the complete hardware of all above that makes installation a snap.
Complete picture installation instruction for X3 Super guaranteed your installation few easy step to complete, all you required to modify the machine is tap and drill 11 holes. ( 4 pc axis, 4 pc y axis, 1 pc Z axis, 2 pc DRO mount) The rest is just screw attached and adjust the custom alignment mounting plate to align the scale.
Dual System switch able, Imperial (inch) or Metric (mm)
Absolute/Incremental/SDM coordination system
1000 work piece zero position memory
Drilling hole in a oblique line
9 Tool compensation on arc cut
Linear error compensation function
High Resolution : 1um (0.001mm) 0.00004 inch
Grating pitch: 0.02mm (50LP/min)
Accuracy: ±0.001 mm (at 20 deg C)
Cable length: Stainless steel tubing for ~ 3 Meter (about 9 feet)
Diaphragm Membrane touch keys (Water/Coolant/Dust Proof)
3x 8-Segment Green LED Display Windows
Input Voltage: AC 85V ~ 250 V, 50 Hz ~ 60 Hz world voltage
Input signal: TTL square wave.
Input signal frequency: >100KHz.
For you other lathe or mill machine, we also offer the following size of the Linear scale, both 0.001mm and 0.005mm resolution. Please email us for quote.
Metric: 120, 170, 220, 270, 320, 370, 420, 470, 520, 620, 750, 820, 920mm.
Inches: 4.7, 6.7, 8.7, 10.6, 12.6, 14.6, 16.5, 18.5, 20.5, 24.5, 29.5, 32.3, 36.2 inches.
All purchased are final, will replace defective product only.
Return package must be in the original packaging, everything must be in new condition. Missing partÂ’s or anything in original contact will not qualify for any refund.
Defective item can be exchanged within 7 days of receipt.
Replacement and refunds will not be processed until the return item received.
