Fom cnc double head non ferrous saw w/encloser
For Sale: Fom cnc double head non ferrous saw w/encloser
Subject Fom cnc double head non ferrous saw w/encloser
Ad is submitted by poster:

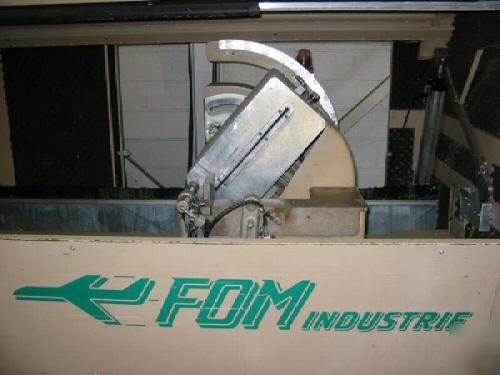

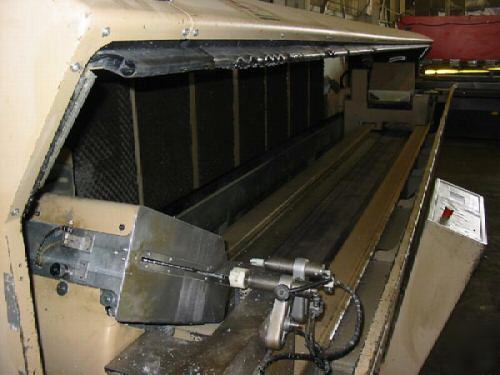

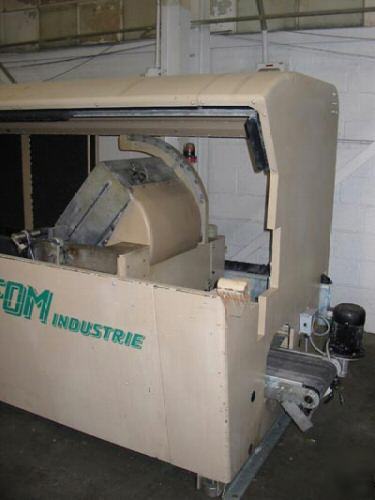

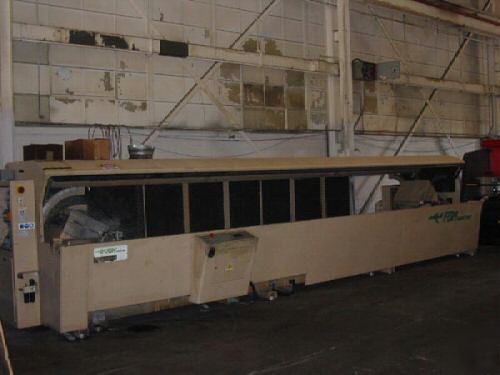

Used FOM CNC Double Head Saw Model BLITZ 50CZC
with Sound and Safety Enclosure (1998)
Cut Dimensions: at 90º at 45º at 20º
5-½†w x 11-â…œâ€h 5-½â€w x 7-¼â€h 5-½â€w x 3-½â€h
Minimum Cut Length: 9†between heads at 90º
Motors: Direct Drive Blade Motors 3 HP each, 2800 rpm
Electrics 460 volt, 3 phase, 60 hz

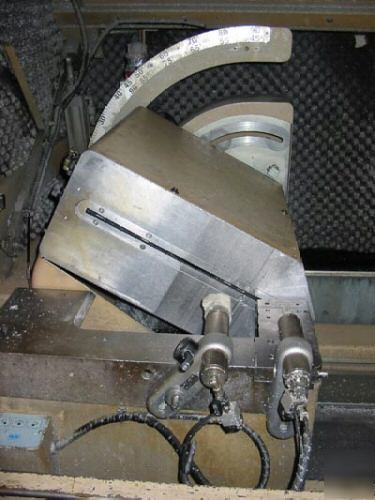

Head Tilt: 45º inward, 20º outward and intermediate degrees,
Right Head: Automatic positioning, can also position manual
Machine Dimensions:(Approx) 235†long x 72†wide x 72†high
Machine Weight: 6,000 lbs. (Approx)
· Compact sliding control panel and keyboard
· Automatic positioning of mobile head
· 100 profile heights filed for automatic compensation of dimension set for 45º
· Piece counter with automatic shut off
· Readout of intermediate cutting angles
· Automatic setting of cutting angles
· Conveyor belt for automatic collection of chips, synchronized to the operation of the saw heads.
· Complete enclosure of sawing unit for noise reduction, total collection of chips and fumes, exceeds OSHA standards
· Pneumatic clamping of work piece
Be sure to add me to your favorites list!
Be sure to add us to your favorite sellers list for daily additions!!!
For more specs on this machine and others please visit
6% Michigan sales tax where applicable.
