Lecroy dda-120 1GHZ 4 channel 8GS/s oscilliscope tested
For Sale: Lecroy dda-120 1GHZ 4 channel 8GS/s oscilliscope tested
Subject Lecroy dda-120 1GHZ 4 channel 8GS/s oscilliscope tested
Ad is submitted by poster:
Click on picture for a larger image.

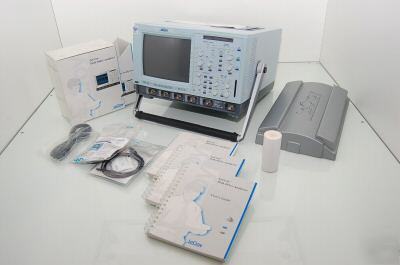

Lecroy DDA-120 1GHz 4 Channel 8GS/s Digital Oscilloscope (Disk Drive Analyzer) with probes
CLBZ- Piezo Buzzer Alarm Installed
GP01 - internal graphics printer
WP01 - advanced waveform math package
WP02 - spectrum analysis package
WP03 - parameter analysis package
PRML - supplementary disk drive measurements
DDFA - disk drive failure analysis
MC01 - PCMCIA memory card reader
JTA - Jitter and timing solutions package
Many of these options singly by themselves would cost more than the oscilloscope sells for used now. The MSRP for this unit was about 41K.
- Full factory set of manuals in box
- 2x PP005 500MHz 10X Passive Oscilloscope Probes with accessories
Simultaneous Maximum Sampling Rate/ch: 2 GSa/s
One ch. only max. sampling rate: 8 GSa/s
Max. Record Length: 16000000 pt/sec
Min. Vertical Sensitivity: 2 mV/div
Maximum Vertical Sensitivity: 10 V/div
Input Impedance (alternate): 50 Ohm
Maximum Input Voltage: 400 Vrms
Maximum Input#2 (for Impedance #2): 5 Vrms
Trigger Source: External,Internal
Trigger Modes: Auto,Edge,Normal,Pulse,Single,Slope,Stop,TV
Thanks for looking and let me know if you have any questions about the item, I will do my best to answer. The unit is sold tested and is guaranteed NON-DOA with a 7 day ROR.
CO STATE RESIDENTS: All items won by Colorado residents will be subject to 6.7% sales tax.
