Honeywell hot surface ignition smart valve SV9410M2902
For Sale: Honeywell hot surface ignition smart valve SV9410M2902
Subject Honeywell hot surface ignition smart valve SV9410M2902
Ad is submitted by poster:

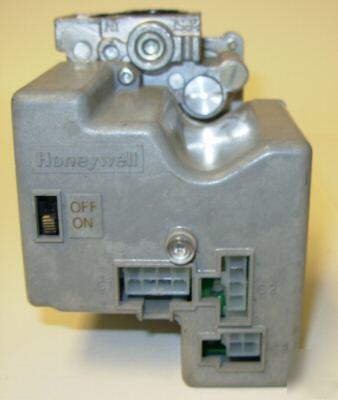

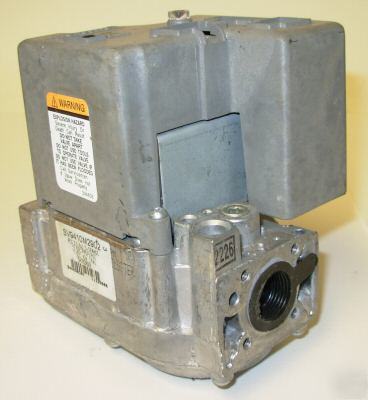

Honeywell Direct Hot Surface Ignition Smart Valve
The SV9410 SmartValveâ„¢ System Controls combine gas flow control and electronic direct main burner ignition sequencing functions into a single unit. The ignition source is 120V hot surface igniter lighting the main burner flame. Provides all gas ignition safety functions by controlling gas flow, ignition source, and a 120 Vac combustion air blower. The control also monitors the appliance airflow proving switch circuit and limit string to assure proper appliance operation. The SmartValveâ„¢ System Controls provide prepurge, postpurge and timed trial for ignition with multiple ignition trials and auto reset from lockout. Diagnostic LED indicates system status.
4 Ignition Trials/ 60 min Auto restart/ 7 sec. Postpurge/ 17/27 sec. HSI Warmup/ 24V 50/60Hz
Reg 3.50/ Adjustable 3-5 Range
This is an oem valve used in Modine heaters. They scrapped a load of brand new heaters and we removed the valves from the burner assy. Some of these were laying in a box and were never installed. Some of these regulators have a few scratches on them but overall are in good condition. We do not have the wiring harness!
