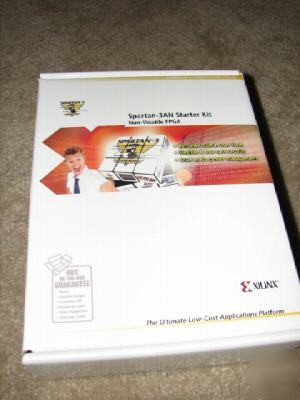

Xilinx spartan 3AN non-volatile fpga development kit 3
For Sale: Xilinx spartan 3AN non-volatile fpga development kit 3
Subject Xilinx spartan 3AN non-volatile fpga development kit 3
Ad is submitted by poster:
Check this out at XILINX HERE! $225.00 NEW
This general purpose non-volatile FPGA platform evaluation board includes 10/100 Ethernet/PHY, ADC/DAC circuitry, and connectivity options. Robust subsystems allow you to:
Multiboot pre-programmed reference designs in a single session.
Prototype countless applications with support for 26 single-ended and differential I/O standards.
Connect to DDR2 memory for rapid data transfer using proven memory interface controller.
Shorten development time with pre-verified design files and schematics.
Safeguard your designs with exclusive Spartan-3AN features.
Power supply 100-240V, 50/60 Hz with universal plug adaptors
Evaluation software: Xilinx ISE™ WebPACK™ or ISE™ Foundation™ Evaluation
Xilinx Devices: Spartan-3AN (XC3S700AN-FG484) and Platform Flash (XCF04S-VOG20C)
Clocks: 50 MHz crystal oscillator on-board, open slot for optional user-installed clock
Memory: 4 Mbit Platform Flash PROM, 32Mx16 DDR2 SDRAM, 32 Mbit parallel Flash, 2-16 Mbit SPI Flash devices
Analog Interface Devices: 4-channel D/A converter, 2-channel A/D converter, Signal Amplifier
Connectors and Interfaces: Ethernet 10/100 PHY, JTAG USB download port, two 9-pin RS-232 serial port, PS/2-style mouse/keyboard port, 15-pin VGA connector capable of 4,096 colors, one FX2 100-pin and two 6-pin expansion connectors, 20 user I/O available on standard header pins, stereo mini-jack for PWM audio. Rotary/push button function switch, eight individual LED outputs, four slider switches, four push-button switches.
Display: 16 character, 2-Line LCD
Markets: Consumer, Telecom / Datacom, Servers, Storage
Applications: General Prototyping
repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our
rules (on front page).
Posted By: Eddie Santana
Contact: e-santana@repair--parts.com (Eddie Santana) (this is a temporary forwarding address).
