Busio-dcout (busio dc output) basic stamp, pic, atmel
For Sale: Busio-dcout (busio dc output) basic stamp, pic, atmel
Subject Busio-dcout (busio dc output) basic stamp, pic, atmel
Ad is submitted by poster:

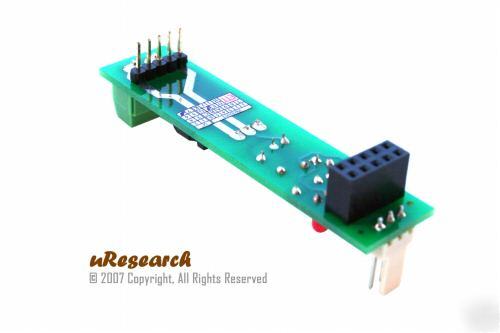

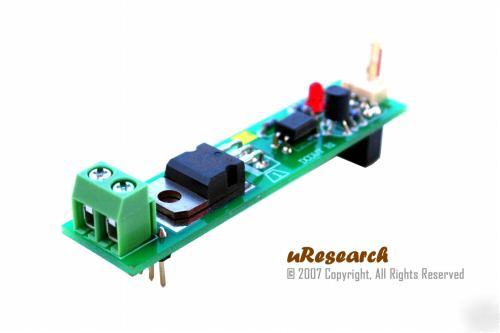

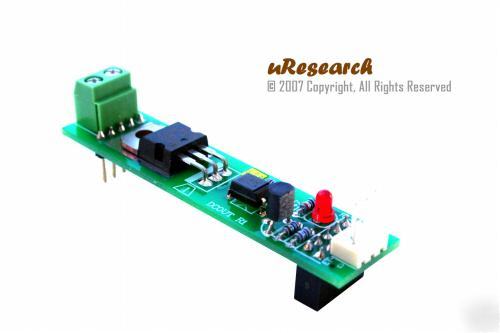

The board can be use with MR-BusIO-MAIN board or stand-alone. PCB size is 0.63†x 2.80â€
The PC817 require at least 5mA to drive input photo-coupler LED. It can take up to 6V in reverse bias. For an output (between collector and emitter), it can drive up to 35V with 50mA continuous current.

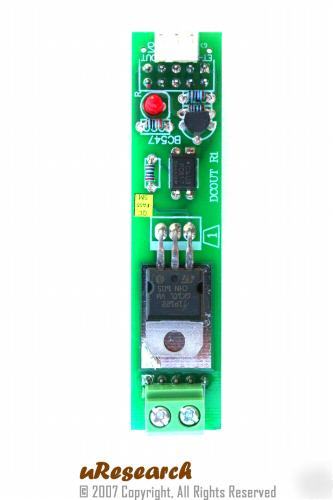

The operation of this board starts when applying logic HIGH to an I/O pin. The voltage get divide down to turn on BC547 transistor which then activate PC817 photo-coupler and indicator LED. The output of PC817 is driving 2SC1061 which start the current flow at the 2-PIN terminal block.
User can connect output DC load up to 50V at 3A continuous current. Total power can be up to 25W at 25°C.
This board can be use to control DC voltage.
For more information please see: MR-BusIO-DCOUT User Manual
“This is sold fully assembled and testedâ€
For more exciting products please visit WWW.MICRORESEARCH.US
