Belimo fire smoke direct coupled actuator FSLF24-s
For Sale: Belimo fire smoke direct coupled actuator FSLF24-s
Subject Belimo fire smoke direct coupled actuator FSLF24-s
Ad is submitted by poster:

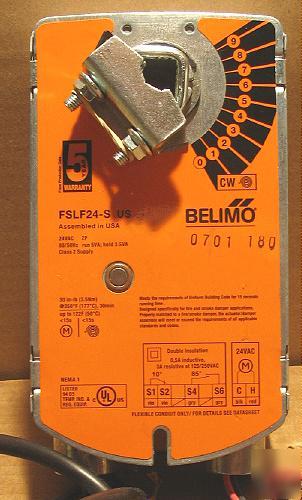

Belimo Fire Smoke Direct Coupled Actuator FSLF24-S
Belimo Fire Smoke Direct Coupled Actuator FSLF24-S
Belimo Fire Smoke Direct Coupled Actuator FSLF24-S
Belimo Fire Smoke Direct Coupled Actuator FSLF24-S US
The type FSLF spring-return actuator is intended for the operation of smoke and combination fire and smoke dampers in ventilation and air-conditioning systems. The actuator will meet requirements of UL555 and UL555S when tested as an assembly with the damper and will meet requirements of UBC for 15 second opening and closing. Square footage of damper operated will depend on make and model and the temperature required.
Mounting of the actuator to the damper axle shaft or jackshaft is via a cold-weld clamp. Teeth in the clamp and V-bolt dig into the metal of both solid and hollow shafts maintaining a perfect connection. The specially designed clamp will not crush hollow shafts. The bottom end of the actuator is held by an anti-rotation strap or by a stud provided by the damper manufacturer. The actuator is mounted in its fail safe position with the damper blade(s) closed. Upon applying power, the actuator drives the damper to the open position. The internal spring is tensioned at the same time. If the power supply is interrupted, the spring moves the damper back to its fail-safe position.
Fire and smoke actuator, 30 in-lb, [3.5 Nm], spring return, 350°F [177°C] for half hour, 15 sec. operation.
Hawaii & Alaska will be extra.
Pickup at our warehouse is available for no additional charge by Appointment M-F 10-6 ONLY.
