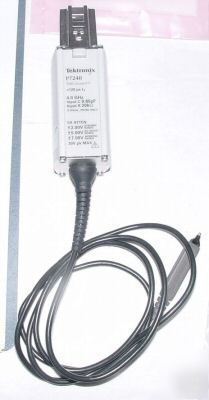

Tektronix P7240 active fet probe w/ accessories
For Sale: Tektronix P7240 active fet probe w/ accessories
Subject Tektronix P7240 active fet probe w/ accessories
Ad is submitted by poster:
Tektronix P7240 - ACTIVE FET Probe features: 4Ghz, x5, tekconnect
Features & Benefits
<120 ps Rise Time (Guaranteed)
4 GHz Bandwidth
<0.5 pF Input Capacitance (P6241 Only)
Small Form Factor Probe Head
8 Vp-p Dynamic Range (P6241 Only)
Direct Access to SMDs
Oscilloscopes Supported:
P7240 TDS/CSA7000B Series
Probe Interfaces:
P7240 TekConnectâ„¢ Interface
Applications
High-speed Digital Systems Design
Component Design/Characterization
Signal Integrity, Jitter and Timing Analysis
Manufacturing Engineering and Test
Signals with Voltage Swings up to 8 Vp-p
Measures 3.0 V Logic, InfiniBand, PCI Express, DDR, Rambus Data Lines, Gigabit Ethernet
The P7240 with TekConnect interface is a high-performance active probe with high bandwidth and low capacitive loading to make it the probe of choice for demanding design applications, such as Rambus, DDR DRAM and AGP. This probe and others in the family are also suited for applications in the communication industry, for measurements on Fibre Channel and Gigabit Ethernet. With the TekConnect interface, you can be assured that maximum signal integrity is maintained to meet present and future bandwidth needs.Tektronix P7240 Specifications: 4Ghz, x5, tekconnect
<120 ps Rise Time (Guaranteed)
<0.5 pF Input Capacitance (P6241 Only)
8 Vp-p Dynamic Range (P6241 Only)
High-speed Digital Systems Design
Component Design/Characterization
Signal Integrity, Jitter and Timing Analysis
Manufacturing Engineering and Test
Signals with Voltage Swings up to 8 Vp-p
Measures 3.0 V Logic, InfiniBand, PCI Express, DDR, Rambus Data Lines, Gigabit Ethernet
The P7240 with TekConnect interface is a high-performance active probe with high bandwidth and low capacitive loading to make it the probe of choice for demanding design applications, such as Rambus, DDR DRAM and AGP. This probe and others in the family are also suited for applications in the communication industry, for measurements on Fibre Channel and Gigabit Ethernet. With the TekConnect interface, you can be assured that maximum signal integrity is maintained to meet present and future bandwidth needs.
There are no options supplied with this unit.
* Accessory kit: Adapter spring, pkg. of 10 Qty. 1 [016-1774-00]
* Accessory kit: Pogo pin, pkg. of 10 Qty. 1 [016-1772-10]
* Probe, tip, Suretoe: pkg. of 4 Qty. 1 [ST501]
* Marker kit, ID: Cable marker band, 2 ea., var. colors Qty. 1 [016-1315-00]
* Customizable ground lead, set of 5 Qty. 1 [196-3482-00]
* Lead set; Accessory kit, incl. three 3.0 inch ground lead, two differential lead Qty. 1 [196-3456-00]
* ANTI-STATIC WRIST STRAP Qty. 1 [006-3415-04]
* Tip,Probe;Microckt Test, SMT Klip Chip [206-0364-01]
* Accessory Kit:GND Pin Length Adapter, Pkg of 10, Qty. 1 [016-1773-10]
* Probe Tip. Pkg of 10, Qty. 1 [131-5638-11]
* All units power on without error.
* All units are supplied exactly as shown.
* All equipment is packed with Instapack® foam-in-place.
* Bank Transfer is required for all international orders (carries a $25.00 fee).
* Certified Check, Personal Check (allow 10 days after receipt for personal checks to clear).
