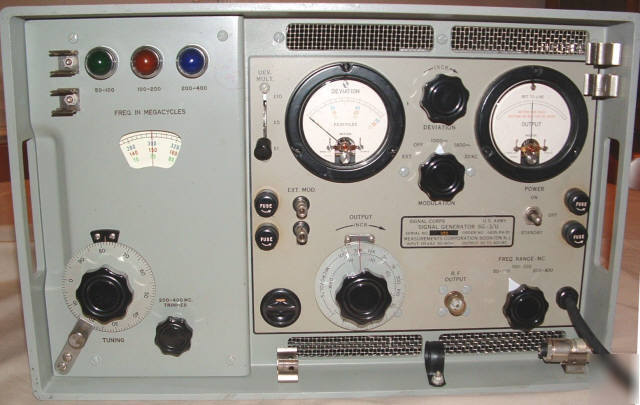

SIGNAL GENERATOR SG-3U ARMY CORPS, FIELD CASE AN/URM-70
This is a Tube Type Signal generator SG - 3U, ARN/URM-70, made by Measurements Corporation for the U.S. Army Signal Corps, SN 1152. This Signal Generator is designed to provide VHF test signal for field and laboratory measurements, testing, and alignments. This unit comes in a shock mounted Transit case and may be used in or out of case. Some applications are: Calibrating Oscillators, measure receiver sensitivity, measure of signal plus noise-to-noise ratio, overall distortion, band-pass characteristics. alignment procedures,and measurement of a receiver's image projection ratio.
Specifications are as follows:
FREQUENCY RANGE RATING 50.0 TO 400.0 MEGAHERTZ
CALIBRATION ACCURACY RATING PORM 1.0 PCT
CALIBRATED SIGNAL OUTPUT RANGE 0.1 TO 100000 UV
SIGNAL OUTPUT CONSTANCY PORM 2 DB
OUTPUT IMPEDANCE RATING 50.0 OHMS NOMINAL
MODULATED FREQUENCY RATING 160.0 HERTZ NOMINAL AND 200.0 HERTZ NOMINAL
MODULATION DEGREE 0.5 PERCENT MINIMUM AND 0.5 PERCENT MAXIMUM
VOLTAGE RATING 115.0 VOLTS AC NOMINAL Single Phase
FREQUENCY RATING 50.0 HERTZ MINIMUM AND 60.0 HERTZ MAXIMUM
CASE MATERIAL ALUMINUM PAINTED
Dimensions 17.312? x 11.25? x 14.875?
SPECIAL FEATURES INDUCTANCE-CAPACITANCE TUNED OSCILLATOR
III END ITEM IDENTIFICATION TYPE NO. AN/URM-70
NON-DEFINITIVE GOVERNMENT SPEC MILS11107
DEFINITIVE GOVERNMENT SPEC/STD SG3U
There is a Schematic inside of the bottom panel and manuals are available online, search by AN/URM-70. All tubes are mounted with tube retaining shields or retention devices. This unit is in very good physical condition and does appear to be in working condition.
