Winslow hc exactomatic drill grinder
For Sale: Winslow hc exactomatic drill grinder
Subject Winslow hc exactomatic drill grinder
Ad is submitted by poster:

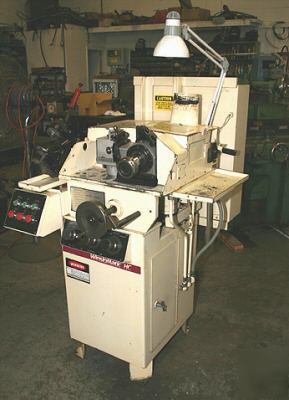

WINSLOW HC EXACTOMATIC DRILL GRINDER S/N 940-00651-91 – NEW 1991
SPINDLE MOTOR: 1 H.P., 1800 RPM
WORKHEAD MOTOR: 1/4 H.P., 1800 RPM
Conventional Points 1/16" up to 1"
FLOOR SPACE: W - 3'6", DEPTH - 4', HT. - 4'
APPROXIMATE MACHINE WEIGHT: 700 LBS.
* POINTS DRILLS FR0M: 90 DEG. TO 140 DEG. INCLUDED ANGLE
COMMENTS: PRODUCTION RATE OF THE HC IS UP TO 150, 1/2" DIA. DRILLS
PER HOUR WITH RAPID SET-UP CHANGE FOR OTHER DIAMETERS.
WILL HANDLE ALL TYPES OF 2-FLUTE, RIGHT & LEFT HAND DRILLS.
NO MAXIMUM DRILL LENGTH LIMITATIONS.

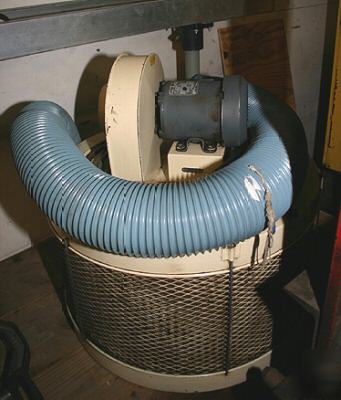

WHEEL BALANCING UNIT – BALANCING ARBOR – MIST KOP MIST COLLECTOR –

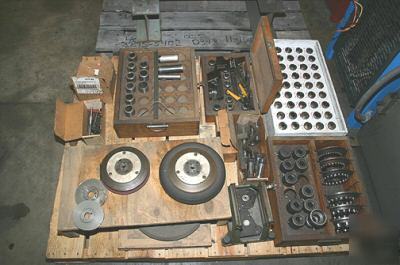

(50) Collets, Hardinge 5ST and 5C - Sizes 4/16†– 1 1/16â€
(6) Bushings and Index Plates – (4) In Inches (2) In Metric:
Inches: 7/32 – 1/4; 21/64 – 5/16; 13/32 – 9/16; 21/32 – 3/4
(10) Toolholders from .052 - .656
(17) Asst. Erickson Spring Collets
(4) Grinding Wheels and Extra Set of Hubs
(10) Bickford Points .188 - .250 to .750 – 1.00
