Sinclair uhf filter cavity, 3/4 wave band-pass
For Sale: Sinclair uhf filter cavity, 3/4 wave band-pass
Subject Sinclair uhf filter cavity, 3/4 wave band-pass
Ad is submitted by poster:
New Condition, but not in original box. Never put in service.

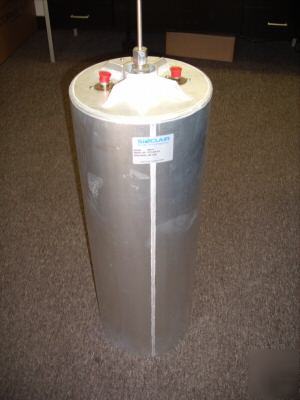

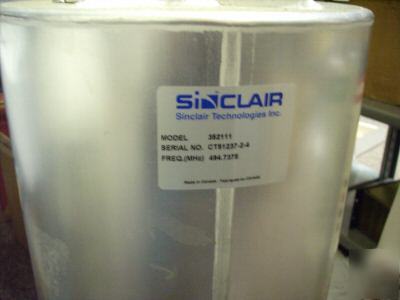

Sinclair Model 352111 UHF Filter Cavity. Special Production High Q, 3/4 Wavelength Band-Pass Cavity. Used in transmitter combiners with close-spaced, <100 KHz, frequencies.
Also used for transmitter filtering and receiver preselector.
Tuneable 440 - 512 MHz. Presently tuned to 494 MHz.
Insertion loss selectable, .5 to 2.0 db.
Bandwidth determined by insertion loss setting.
10 inch diameter cavity, 28 inches high.
Will Also work as a 1/4 Wavelength filter covering 140 - 170 MHz.
