Shigiya seiki GUA41-100 od/id cylindrical grinder 1983
For Sale: Shigiya seiki GUA41-100 od/id cylindrical grinder 1983
Subject Shigiya seiki GUA41-100 od/id cylindrical grinder 1983
Ad is submitted by poster:

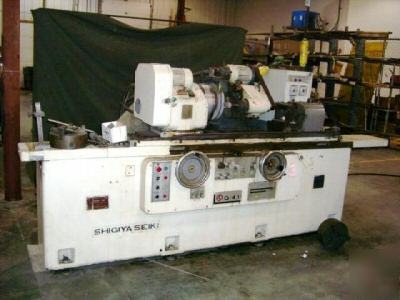

1983 SHIGIYA SEIKI GUA-41-100 UNIVERSAL OD/ID CYLINDRICAL GRINDER
(SN# 30238) Inventory ID: 63240
Swing over Table......................... 16.5"
Center Distance.......................... 38"
Max. Grinding Diameter................... 14"
Wheelslide Swivel........................ 30 Degrees
Standard Grinding wheel Dia.............. 14"x1.25"x5"
Wheel Speed.............................. 1700/1900 RPM
Manual Feed Travel....................... 8.5"
Rapid Advance............................ 1.5 IPM
Handle Feed One Revolution............... 0.04"
Fine Feed..................... 0.0001"
Max. Automatic Infeed Stroke............. ~0.03"
Automatic Continuous Infeed Speed........ Up To .1 IPM
Max. Spark-Out Stroke.................... 30
Max. Spark-Out Time...................... 30 Sec
Spindle Rotation, Swivel................. 120 Degrees
Spindle Speeds (9 By Belt Change)........ 13-252 RPM
Center Taper............................. 4 MT
Center Taper............................. 4 MT
Quill Stroke............................. ~1.1"
Wheel Spindle Lubricate.................. 3 Gal
Hydraulic and Lubricating Oil............ 14 Gal
Coolant System........................... 20 Gal
Approximate Weight....................... 9,500 Lbs
Quality Used Metalworking Machinery – No Surprises
5701 Weatherstone Way, Johnsburg, IL 60050
Phone: (***) 497-9800 Fax: (***) 497-9801
Be sure to add me to your favorites list!
repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our
rules (on front page).
Posted By: Lesley Macdonald
Contact: lesleymacdonald@repair--parts.com (Lesley Macdonald) (this is a temporary forwarding address).
