Schmidt direct pressure pneumatic press model 20-098
For Sale: Schmidt direct pressure pneumatic press model 20-098
Subject Schmidt direct pressure pneumatic press model 20-098
Ad is submitted by poster:

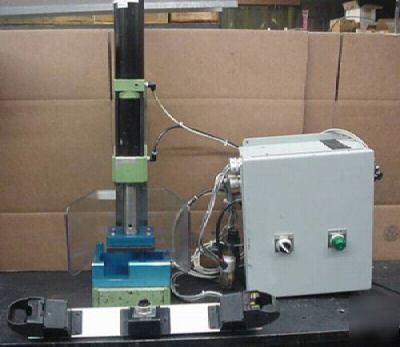

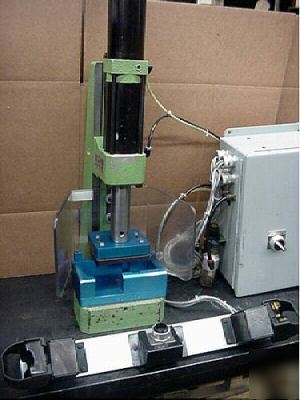

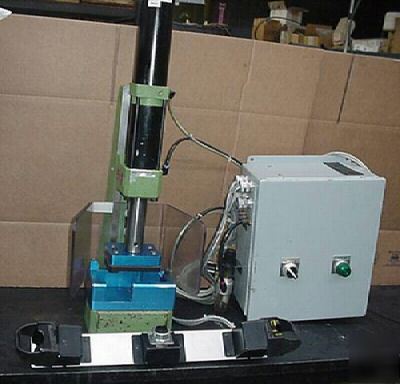

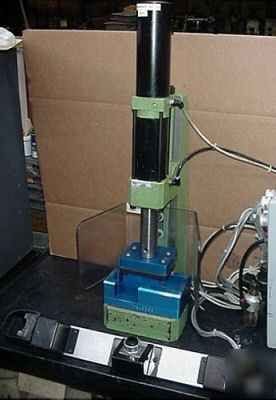

Schmidt Precision Bench Model Direct Pressure Pneumatic Press Model 20-098 with Two-Hand Ergonomic Controls
during normal business hours (EST)
or email MAndrews@repair--parts.com
referencing Schmidt Pneumatic Press
Schmidt Precision Bench Model Direct Pressure Pneumatic Press Model 20-098 with Two-Hand Ergonomic Controls
TECHNICAL DETAILS: * S/N: 3-0974
* Control Voltage: 110, Single Phase
* Pressing capacity: 350 lbs.
* Approximate bed size: 4" x 5" T-slotted
* Approximate work height range: 1" up to 12"
* Approximate overall size: 6" x 11" x 35"high
* Some additional important information: This press has High flexibility due to short retooling time / / No downtime due to maintenance free operation / / Ergonomic design for high output / / Ram guided via maintenance free teflon coated bushings / / Rotation proof ram guide / / Double acting, maintenance free air cylinder / / Low air consumption / / Micrometer ram stroke adjustment: .05mm/.002" increments / / Quick & precise adjustment of working height / / Double lipped piston seal with built-in magnet permitting tie rod mountable ram positioning sensors / / Noise level below 70 dBA / / Column guided die set tooling rarely required / / Ideal for long stroke and constant force pressing applications / / Precise ground bolster plate with T-slot, fixture locating pilot bore and lock screw / / Precision machined vertical ways
EQUIPPED WITH: * (2) Hand ergonomic sensor controls

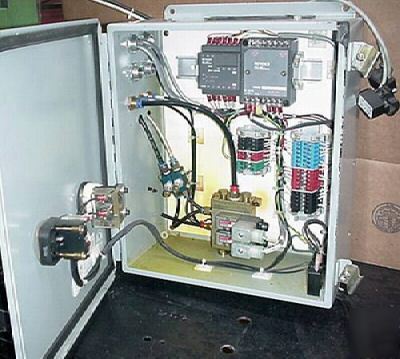

* Separate control box with pressure regulator, gauge and controls
* Electronic stroke completion sensors
* Condition: Excellent, very late model machine
ANY QUESTIONS? SEND EMAIL TO ADDRESS HIGHLIGHTED BELOW
Contact Cliff Davis at 401.724.3200 during normal business hours (EST) or email MAndrews@repair--parts.com referencing inventory #4253-220.
