New parker hannifin 944LSFSFF veriflo diaphragm valve
For Sale: New parker hannifin 944LSFSFF veriflo diaphragm valve
Subject New parker hannifin 944LSFSFF veriflo diaphragm valve
Ad is submitted by poster:
NEW PARKER HANNIFIN VERIFLO QUANTUM 944LSFSFF DIAPHRAGM VALVE (012106601210)
This does not mean that the unit doesn’t work, only that we have not tested or checked it out.
This may also mean that we are not knowledgeable in that specific item.
Please call MONIQUE Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions
between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time.
The Item may vary from picture as manufacture may change model appearance.
All information, including description, specifications and features are from a manufacturers
data sheet or manual and are subject to change without notice.
Meaning that all information included in the description, specifications and features
What you see is what you get! If it doesn’t show it you probably won’t get it!

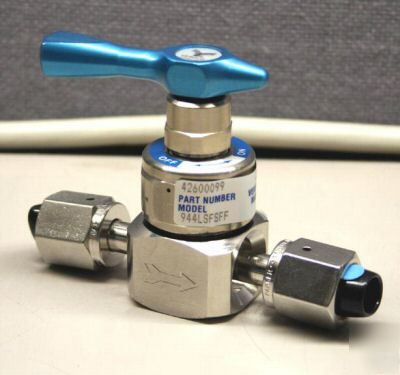

New Parker Hannifin Veriflo Quantum 944LSFSFF Diaphragm Valve
* The 944 is an exceptionally clean valve engineered to provide reliable performance from vacuum to 3,500 psig. The valve cross section on the opposite page illustrates the minimal number of wetted components of this unique design. The only moving part in the wetted area is the diaphragm itself.
* The heart of the 944 is the patented compression member which uniformly loads the PCTFE seat effecting a static seal without the need for threads or crimping and allowing for field replacement. The dynamic seal occurs at the top of the seat which extends approximately .008 inches above the compression member. The valve is closed when the “button†at the end of the piston is compressed against the diaphragm, causing it to move downward and seal against the seat.
* The compression member serves also as a positive stop for the diaphragm. When the diaphragm meets the stop, the PCTFE is still well within its elastic limit.
* “VeriCleanâ€, Veriflo’s low sulfur high purity 316L Stainless Steel enhances electro-polishing, welding, and corrosion resistance.
* Standard surface finishes 5 micro inch Ra (.13 micro meter).
* Internally threadless and springless
* No change in the lever actuating position over the life of the product
* Fully field serviceable seat can be replaced without special tools
* A unique patented compression member which loads the seal uniformly
* Fully functional from vacuum to 3,500 PSIG
* Minimum particle generation and particle entrapment areas
* “Hurricane†cleaning, Veriflo’s proprietary cleaning process, removes metallic ions, organic films and surface adhering particles
