Measurement computing pci pci-DIO96H e-0 94V-0
For Sale: Measurement computing pci pci-DIO96H e-0 94V-0
Subject Measurement computing pci pci-DIO96H e-0 94V-0
Ad is submitted by poster:
Click on picture for a larger image.

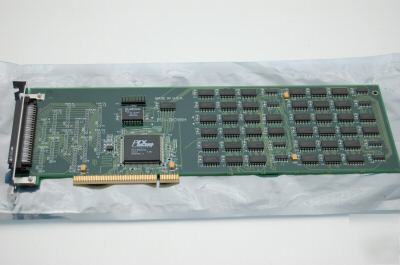

Measurement Computing PCI PCI-DIO96H E-0 94V-0
This item is in good condition. This product is a PCI-DIO96H PCI interface card. Specifications
* +5V Operating...2.1A typical, 3.4A max
* Digital Type...8255 emulation, Mode 0
* Configuration...8 banks of 8, 8 banks of 4, programmable by bank as input or output
* Number of channels...96 I/O
* Output High...2.4 volts min @ -15mA
* Output Low...0.5 volts max @ 64 mA
* Input High...2.0 volts min, 7 volts absolute max
* Input Low...Power-up / reset state: Input mode (high impedance)
* Miscellaneous...Input Low 0.8 volts max, -0.5 volts absolute min
For more information, visit the Measurement Computing website:
http:// /cbicatalog/cbiproduct_new.asp?dept_id=142&pf_id=667&mscssid=HL9M5JD288GH9PSH05UP1NCUQX7E2S76
Thanks for looking and let me know if you have any questions about the item, I will do my best to answer. The unit is sold untested and is guaranteed NON-DOA with a 7 day ROR.
