Hp 83486A dual rate o/e plug-in module w/ opt H48
For Sale: Hp 83486A dual rate o/e plug-in module w/ opt H48
Subject Hp 83486A dual rate o/e plug-in module w/ opt H48
Ad is submitted by poster:

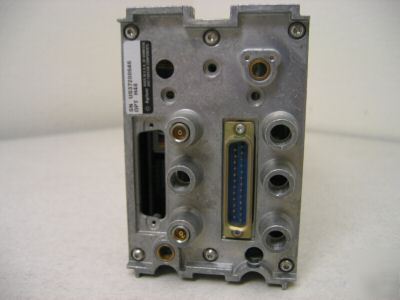

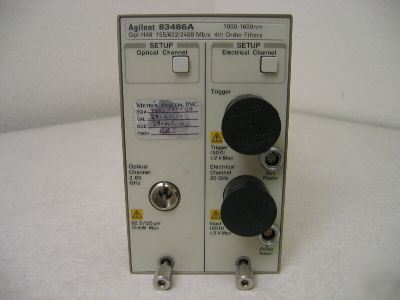

HP 83486A Dual Rate O/E Plug-In Module w/ Opt H48
The purpose of the plug-in module is to provide measurement channels, including sampling, for the mainframe. The plug-in module scales the input signal, sets the bandwidth of the system, and allows the offset to be adjusted so the signal can be viewed. The output of the plug-in module is an analog signal that is applied to the ADCs on the acquisition boards inside the mainframe.
The plug-in module also provides a trigger signal input to the time base/trigger board inside the mainframe.
The Agilent 83486A is one of several plug-in modules available for the Agilent 83480A, 54750A mainframes. The main features of the Agilent 83486A are:
Integrated, calibrated optical channel.
2.5 GHz optical channel bandwidth and user selectable 12.4 or 20 GHz electrical channel bandwidth.
1000 nm to 1600 nm wavelength range.
Optical channel has switchable 155/622 Mb/s SONET/SDH filters or 1063/1250 Mb/s datacom filters.
μm (maximum) multimode, user selectable optical input connector option.
Electrical measurement channel.
Trigger channel input to the mainframe.
3.5 mm (m) connectors on the electrical measurement channel and trigger channel.
One probe power connector.
One auxiliary power connector.

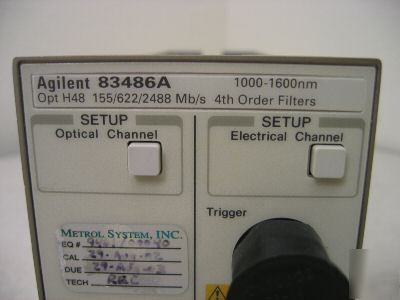

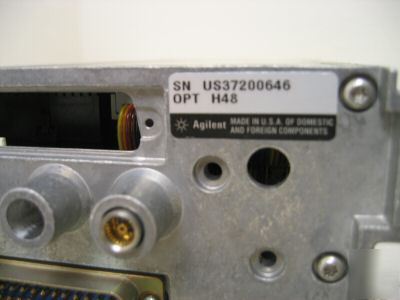

* option H48: 155/622/2488 Mb/s 4th order filters
* This used item is in excellent working condition.
* No accessories are included.
* 14 Day Guarantee Against DOA
